Запчасти Case IH FARMALL 90CL (35.114.030) - VAR - 744833, 759013 - REAR, HYDRAULIC LIFT, CONTROL VALVE, COMPONENTS (35) - HYDRAULIC SYSTEMS

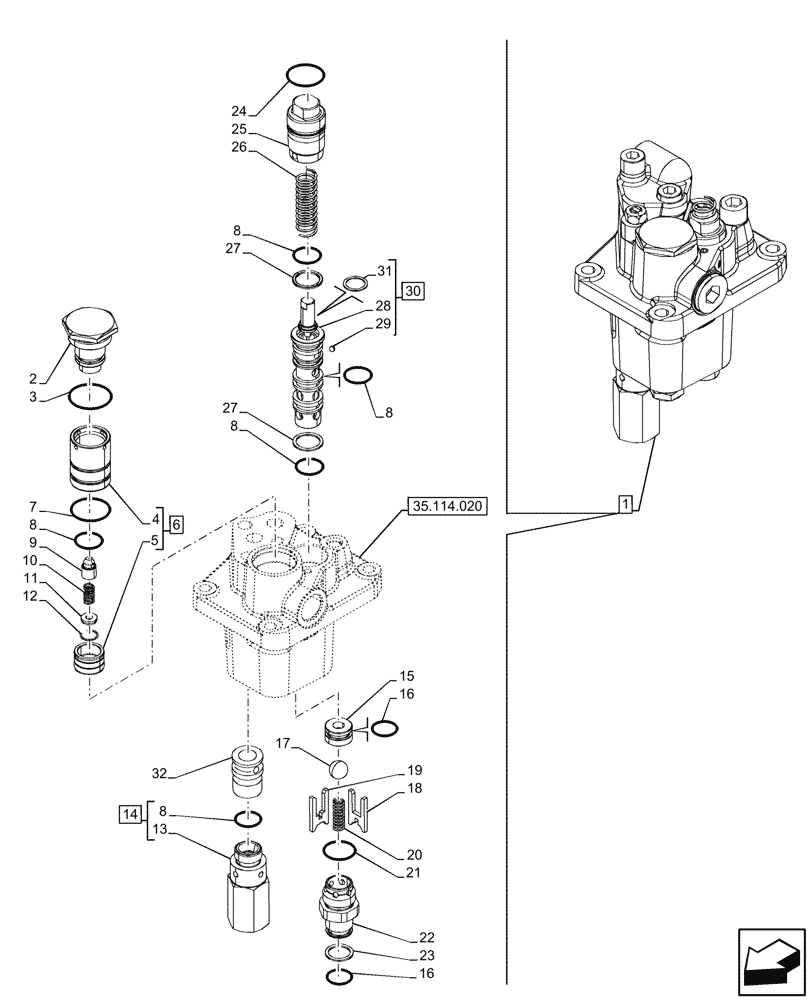

Схема запчастей Case IH FARMALL 90CL - (35.114.030) - VAR - 744833, 759013 - REAR, HYDRAULIC LIFT, CONTROL VALVE, COMPONENTS (35) - HYDRAULIC SYSTEMS
10
29
6
13
12
16
15
9
30
14
23
8
3
2
31
32
17
25
27
27
24
5
11
20
26
1
19
16
7
21
8
22
28
8
4
8
8
18
35.114.020

Артикул

Название

Примечание

Количество

1

48024530

CONTROL VALVE

ASSY, Incl 2 - 32

1шт.

See also Control Valve Components in Figure 35.114.020

1шт.

48024530R

REMAN-HYD VALVE

Reman Control Valve

1шт.

48024530C

CORE-VALVE HYD

Return Number

1шт.

2

5122029

PLUG,M32 x 1.5

1шт.

3

14458081

O-RING,1.112" ID x 0.103" Width

1шт.

4

84185199

REMOTE CONTROL VALVE

Valve

1шт.

5

5117728

PISTON

1шт.

6

84185201

VALVE SEAT

ASSY, Incl 4, 5

1шт.

7

14454081

O-RING,1.051" ID x 0.07" Width

1шт.

8

14457381

O-RING,17.12mm ID x 2.62" Width

5шт.

9

5117732

PIN,10.5mm OD x 15.5mm L

1шт.

10

5115469

SPRING,Compression, 7.7mm OD x 14.5mm L

1шт.

11

5122030

SPRING WASHER,5mm ID x 11.7mm OD x 3mm Thk

1шт.

12

13420376

SNAP RING,M12, Int

1шт.

13

NSS

NOT SOLD SEPARAT

Valve, Incl in 14

1шт.

14

5117739

VALVE PRESSURE RELIE,M20 x 1.5

ASSY, Incl 8 (Qty 1), 13, 31

1шт.

15

5156290

VALVE SEAT,20mm OD x 12mm Thk

1шт.

16

14457281

O-RING,0.612" ID x 0.103" Width

2шт.

17

20063580

BALL,13.49mm OD, Gr 100

1шт.

18

5148907

SPACER,3mm Thk

1шт.

19

5148905

SPACER,3mm Thk

1шт.

20

47974528

SPRING,Compression, 8.5mm OD x 20mm L

1шт.

21

14457581

O-RING,0.799" ID x 0.103" Width

1шт.

22

5156291

HYD CONNECTOR,M24 x 1.5

1шт.

23

4958830

BACK-UP RING,16.26mm ID x 20.62mm OD x 1.14mm Thk

1шт.

24

14453981

O-RING,0.989" ID x 0.07" Width

1шт.

25

5117725

PLUG,M27 x 1.5

1шт.

26

4973361

SPRING,Compression, 15.5mm OD x 50.5mm L

1шт.

27

5117726

WASHER,17.83mm ID x 22.19mm OD x 1.14mm Thk

2шт.

28

NSS

NOT SOLD SEPARAT

Pilot Valve, Incl in 1

1шт.

29

20063420

BALL,3.96mm OD, Gr 100

1шт.

30

84277569

PILOT VALVE

ASSY, Incl 28, 29

1шт.

31

586761

VALVE SPRING,10.2mm ID x 20mm OD x 1.1mm Thk

22шт.

32

47124173

VOLTAGE REGULATOR

1шт.

Выбрано товаров: 35
