Запчасти Case IH FARMALL 90CL (31.146.040) - VAR - 743522 - FRONT PTO, PROTECTION (31) - IMPLEMENT POWER TAKE OFF

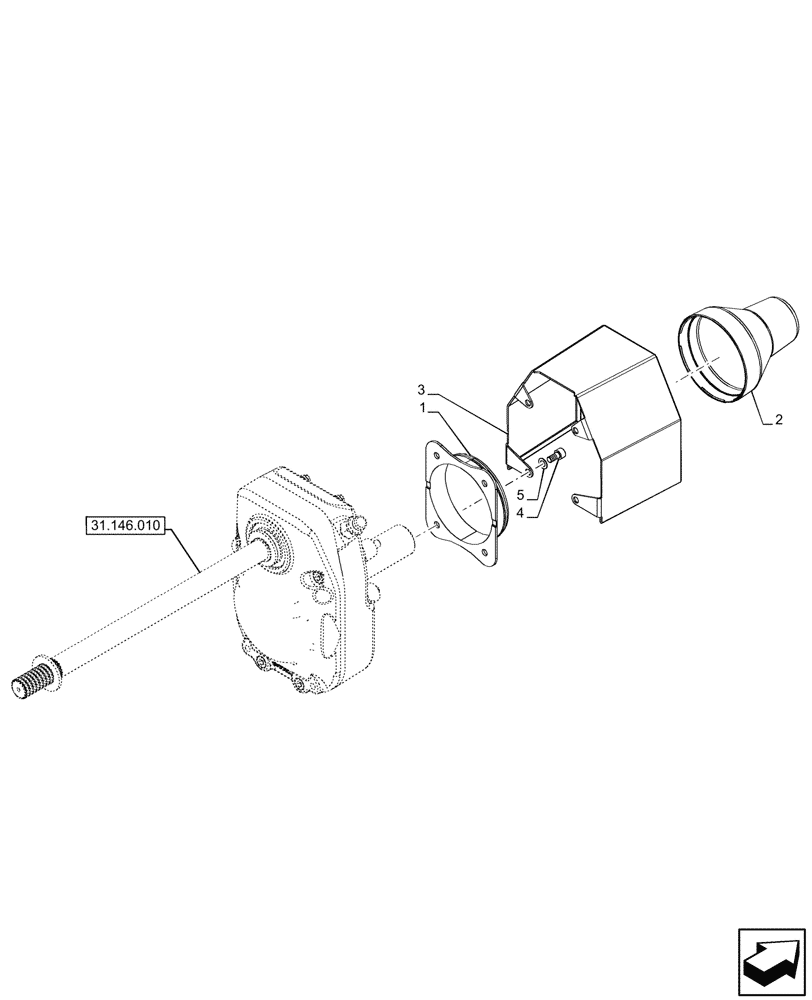

Схема запчастей Case IH FARMALL 90CL - (31.146.040) - VAR - 743522 - FRONT PTO, PROTECTION (31) - IMPLEMENT POWER TAKE OFF
31.146.010
1
3
2
4
5

Артикул

Название

Примечание

Количество

1

5155332

SEAL PROTECTION,115mm ID x 122mm OD x 29mm Thk

1шт.

2

5171520

SHIELD,132mm L

PTO

1шт.

3

47916330

PROTECTION PLATE

Dark Grey

1шт.

4

14306224

HEX SOC SCREW,M8 x 1.25 x 16mm, Cl 8.8, Full Thd

4шт.

5

12601374

WAVE WASHER,Wave, 8.40mm ID x 15.00mm OD x 0.80mm, 3.00mm, CST, DAC

4шт.

Выбрано товаров: 5
