(21.118.040) - VAR - 743381, 743508 - TRANSMISSION, HOUSING, PLUG, SHUTTLE, W/O CAB

Запчасти Case IH FARMALL 90CL (21.118.040) - VAR - 743381, 743508 - TRANSMISSION, HOUSING, PLUG, SHUTTLE, W/O CAB (21) - TRANSMISSION

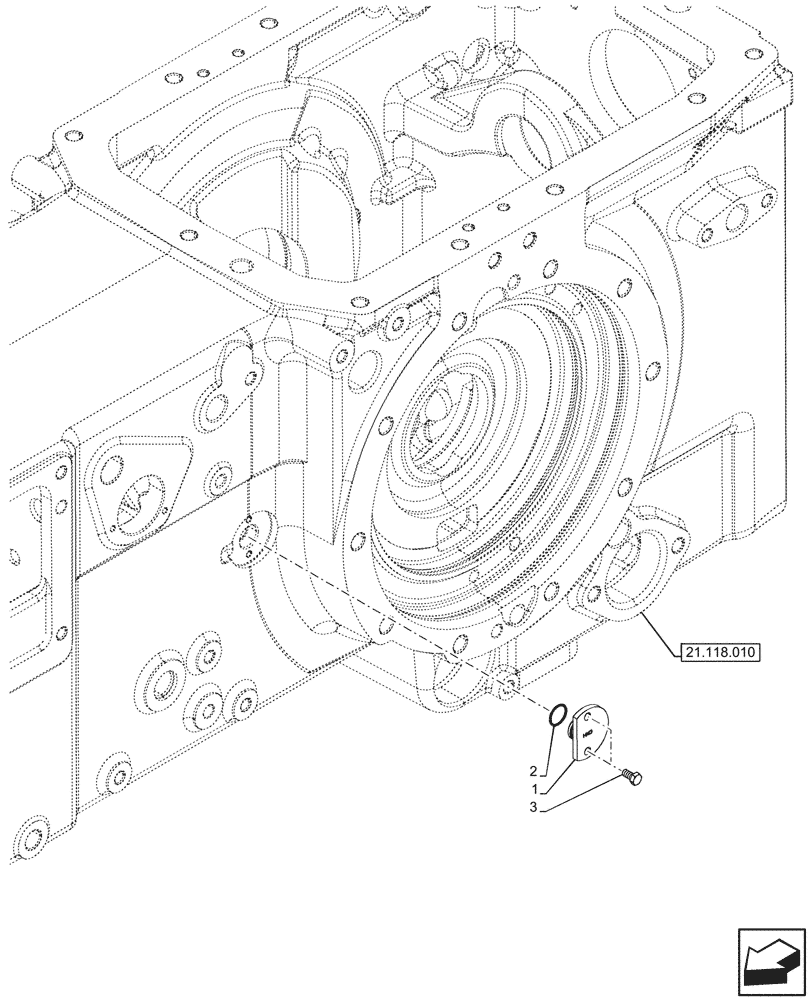

Схема запчастей Case IH FARMALL 90CL - (21.118.040) - VAR - 743381, 743508 - TRANSMISSION, HOUSING, PLUG, SHUTTLE, W/O CAB (21) - TRANSMISSION
21.118.010
1
2
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5171837

PLUG,17.3mm ID x 42mm OD x 7.5mm Thk

1шт.

2

14453280

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

1шт.

3

10977514

BOLT,Hex, M5 x 10mm, Cl 5.8, Full Thd

2шт.
