Запчасти Case IH FARMALL 90CL (18.104.030) - VAR - 743522, 759018, 759019 - PTO CLUTCH, CONTROL, VALVE (18) - CLUTCH

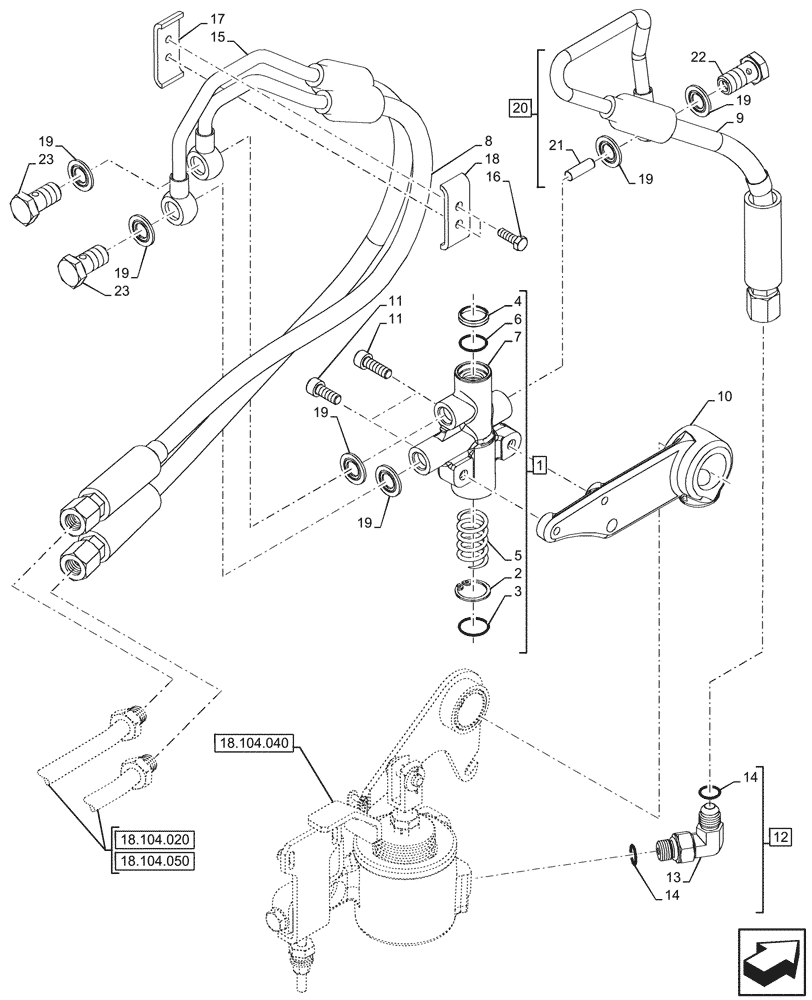

Схема запчастей Case IH FARMALL 90CL - (18.104.030) - VAR - 743522, 759018, 759019 - PTO CLUTCH, CONTROL, VALVE (18) - CLUTCH
18.104.040
23
18
19
12
6
11
19
23
9
19
14
19
4
17
13
20
1
2
15
22
21
19
14
16
3
19
11
7
8
5
10
18.104.020
18.104.050

Артикул

Название

Примечание

Количество

1

5185025

HYDRAULIC VALVE

ASSY, Incl 2 - 7

1шт.

2

11057876

SNAP RING,M20, Int

1шт.

3

14457180

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

1шт.

4

5114359

SCRAPER RING,Locking, 12mm ID x 18mm OD x 5mm Thk

1шт.

5

5188876

SPRING,Compression, 18.5mm OD x 30.5mm L

1шт.

6

5192732

O-RING,11.91mm ID

1шт.

7

NSS

NOT SOLD SEPARAT

Control Valve Body, Incl in 1

1шт.

8

47988122

PRESSURE PIPE

1шт.

9

5183774

FLEXIBLE HOSE,12.2mm ID x 232mm L

1шт.

10

5183637

LEVER

1шт.

11

14305224

HEX SOC SCREW,M6 x 16mm, Cl 8.8, Full Thd

2шт.

12

87616449

HYD CONNECTOR

ASSY, Incl 13, 14

1шт.

13

NSS

NOT SOLD SEPARAT

Elbow 90°, Incl in 12

1шт.

14

14437685

O-RING,9.30mm ID x 2.40mm

2шт.

15

48084451

Pressure

PIPE

1шт.

16

10977811

SCREW,M5 x 15mm L

2шт.

17

5184084

RETAINER COLLAR,2x5mm ID x 40mm L

1шт.

18

5184304

BRACKET

1шт.

19

5183780

SEALING WASHER,9.73mm ID x 18mm OD x 1.5mm Thk

6шт.

20

84196125

BANJO BOLT,Hex, M12 x 1.5

ASSY, Incl 21, 22

1шт.

21

47126655

FILTER STRAINER

1шт.

22

NSS

NOT SOLD SEPARAT

Banjo, Incl in 20

1шт.

23

10185011

BANJO BOLT,M12 x 1.25 x 23mm

2шт.

Выбрано товаров: 23
