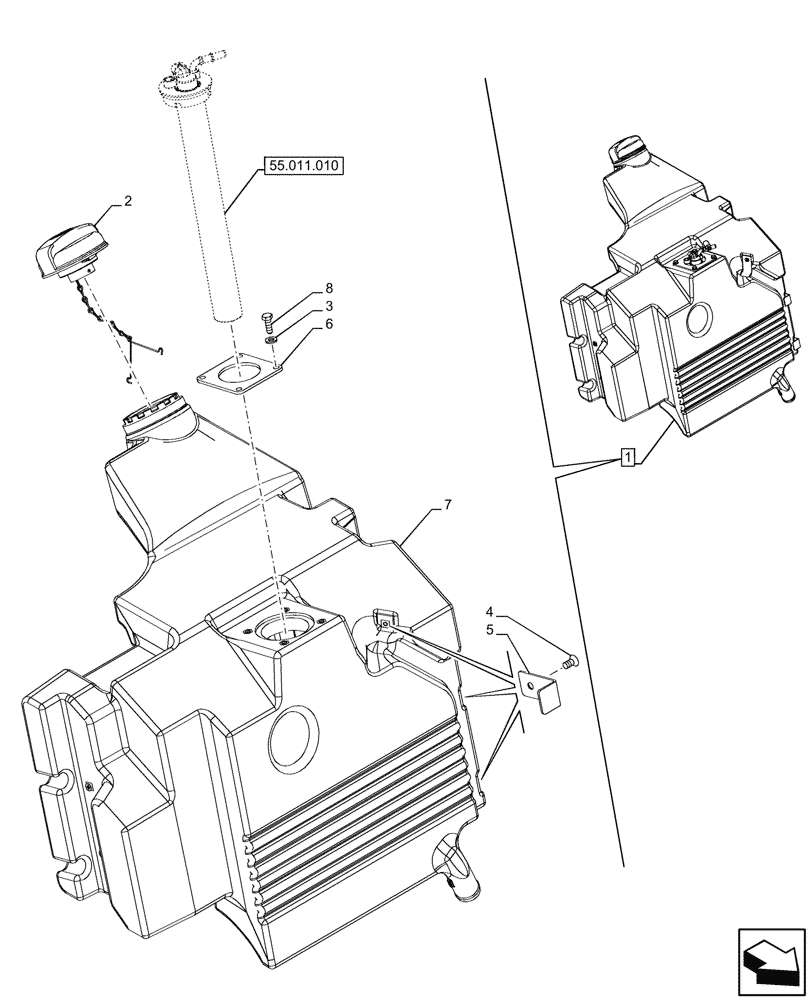

Запчасти Case IH FARMALL 80CL (10.216.030) - VAR - 759004 - FUEL TANK (10) - ENGINE

1

47444260

FUEL TANK

ASSY, Incl 2 - 8

1шт.

See also Fuel Tank Components in Figure 55.011.010

1шт.

2

87610994

CAP,103mm OD x 69.7mm Thk

1шт.

3

14496404

WASHER,M6 x 12 x 2 Thk

4шт.

4

13301111

SCREW,Pozidriv Flat Hd, Csk, M6 x 12mm, Cl 5.8

3шт.

5

47470986

BRACKET

3шт.

6

87341216

PLATE

1шт.

7

NSS

NOT SOLD SEPARAT

Fuel Tank, Incl in 1

1шт.

8

10902334

BOLT,Hex, M6 x 18mm, Cl 10.9, Full Thd

4шт.
