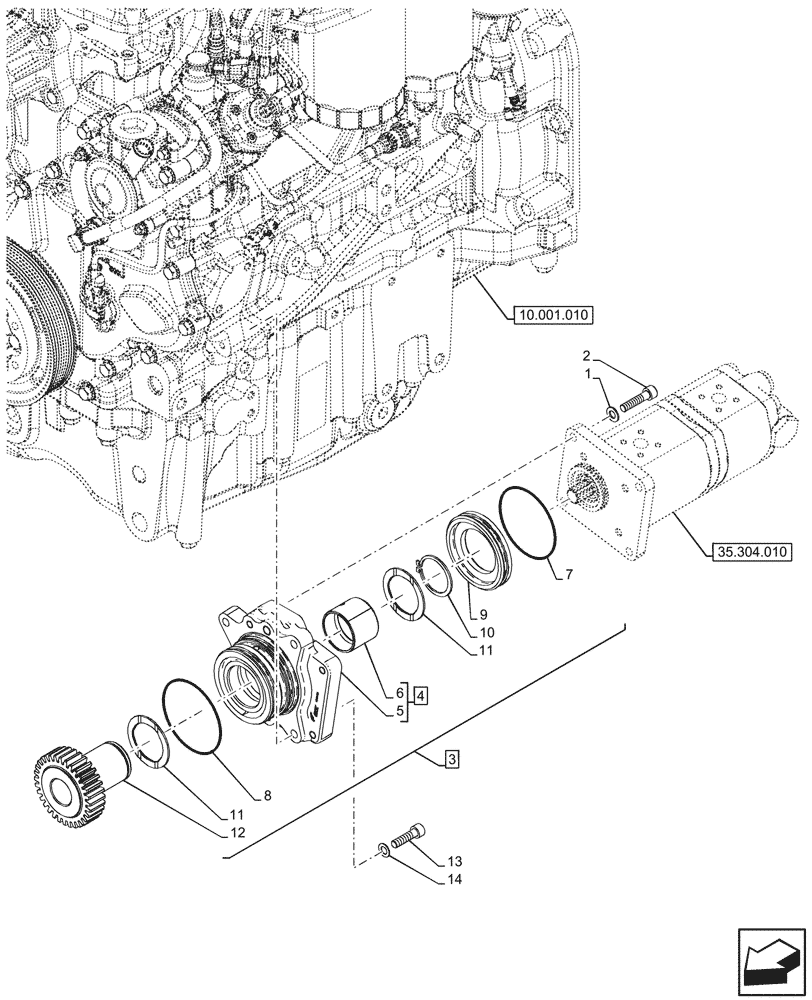

Запчасти Case IH FARMALL 80CL (10.114.010) - VAR - 743524 - ADAPTER, HYDRAULIC PUMP, 60L/MIN (10) - ENGINE

1

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

4шт.

2

14306624

HEX SOC SCREW,M8 x 1.25 x 35mm, Cl 8.8, Full Thd

4шт.

3

84529400

DRIVE

ASSY, Incl 4 - 12

1шт.

4

84529398

DRIVE

ASSY, Incl 5, 6

1шт.

5

NSS

NOT SOLD SEPARAT

Flange, Incl in 4

1шт.

6

84529392

BUSHING,142.03mm ID x 145.97mm OD x 35mm L

43mm ID x 45mm OD x 35mm L

1шт.

7

14465281

O-RING,2.984" ID x 3.262" OD x 0.139"

2шт.

8

14465381

O-RING,3.109" ID x 3.387" OD x 0.139"

1шт.

9

84415688

RING,50mm ID x 70.5mm OD x 13.3mm Thk

1шт.

10

11068976

SNAP RING,M42, Ext

1шт.

11

84529401

WASHER,18mm ID x 42mm OD x 1.8mm Thk

13mm ID x 18mm OD x 1.8mm Thk

2шт.

12

84415690

PTO SHAFT,9T Internal/32T External

1шт.

13

14306531

HEX SOC SCREW,M8 x 1.25 x 30mm, Cl 10.9, Full Thd

3шт.

14

12601374

WAVE WASHER,Wave, 8.40mm ID x 15.00mm OD x 0.80mm, 3.00mm, CST, DAC

3шт.
