Запчасти Case IH FARMALL 80CL (21.154.010) - VAR - 743509 - TRANSMISSION, GEARS & SHAFT, POWERSHUTTLE (21) - TRANSMISSION

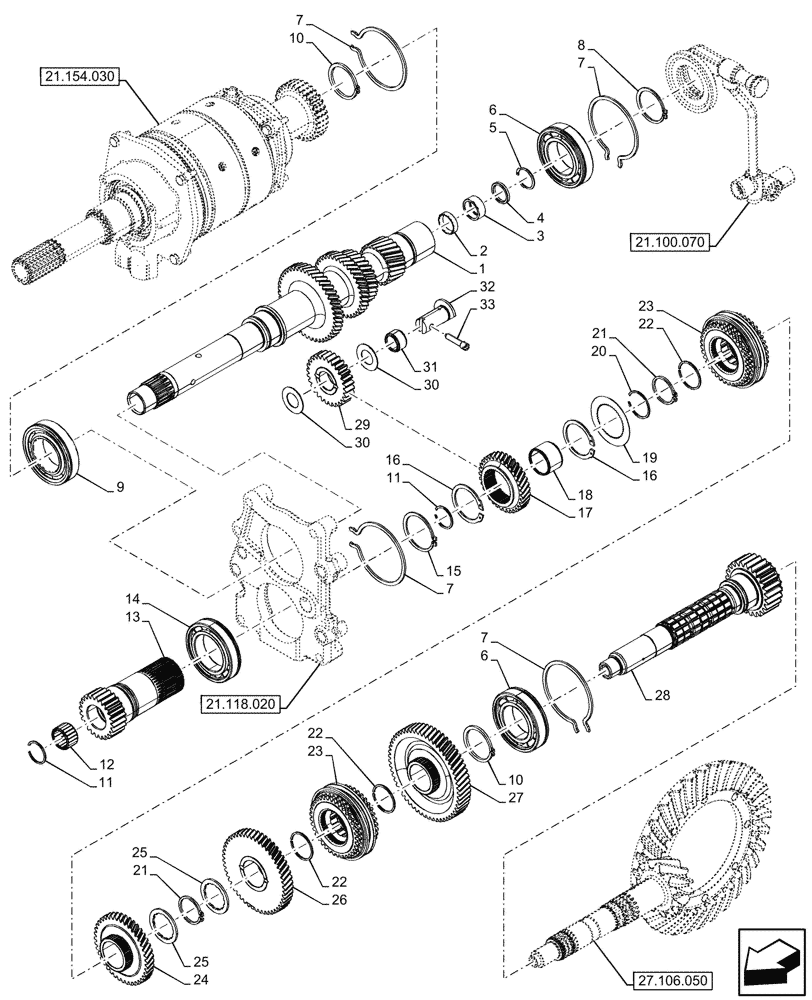

Схема запчастей Case IH FARMALL 80CL - (21.154.010) - VAR - 743509 - TRANSMISSION, GEARS & SHAFT, POWERSHUTTLE (21) - TRANSMISSION
21.154.030
7
23
3
6
7
21
23
30
24
1
11
25
29
20
19
17
16
16
5
18
11
4
7
22
12
21
7
6
22
13
31
2
32
27
15
26
8
22
33
25
28
9
21.118.020
21.100.070
30
14
10
10
27.106.050

Артикул

Название

Примечание

Количество

1

5178816

SHAFT,29mm ID x 555mm L, 18/23/30/36/44T

1шт.

2

5179747

SEAL,25mm ID x 31mm OD x 7mm Thk

1шт.

3

5181211

BEARING ASSY,Needle, 25mm ID x 32mm OD x 12mm W

1шт.

4

5181057

THRUST WASHER,25.1mm ID x 32mm OD x 4mm Thk

1шт.

5

5180152

CIRCLIP,27.8mm ID

1шт.

6

5168187

BALL BEARING,50mm ID x 90mm OD x 20mm W

2шт.

7

5168154

CIRCLIP,85.6mm ID x 2.6mm Thk

4шт.

8

11069376

SNAP RING,M50, Ext

1шт.

9

84517084

BALL BEARING,50mm ID x 90mm OD x 20mm W

1шт.

10

5138419

SNAP RING,M50

2шт.

11

5168199

SNAP RING,1.5mm Thk, Int

2шт.

12

5168198

ROLLER BEARING,25mm ID x 33mm OD x 20mm W

1шт.

13

5178815

GEAR,24T

Z 24, Driven Reverser

1шт.

14

5178809

BALL BEARING,55mm ID x 90mm OD x 18mm W

1шт.

15

11069576

SNAP RING,M55, Ext

1шт.

16

11069476

SNAP RING,M52, Ext

2шт.

17

5178812

GEAR,33T

Z 33, Driven IV Speed

1шт.

18

5168196

ROLLER CAGE BEARING,35mm ID x 40mm OD x 27mm W

1шт.

19

5172073

SHIM,0.5mm Thk

1шт.

19

5179351

SHIM,0.75mm Thk

1шт.

19

5172074

SHIM,1mm Thk

1шт.

19

5179352

SHIM,1.25mm Thk

1шт.

19

5172075

SHIM,1.5mm Thk

1шт.

19

5179353

SHIM,1.75mm Thk

1шт.

19

5172076

SHIM,2mm Thk

1шт.

19

5179354

SHIM,2.25mm Thk

1шт.

20

5168197

SNAP RING,1.5mm Thk, Int

1шт.

21

5123651

SNAP RING,36mm, External

2шт.

22

5168195

SNAP RING,1.5mm Thk, Ext

3шт.

23

87603953

SYNCHRONIZER

2шт.

24

5172053

GEAR,40T

Z 40, Driven III Speed

1шт.

25

5177039

THRUST WASHER,52mm OD x 2.5mm Thk, 12T

2шт.

26

5172054

GEAR,49T

Z 49, Driven II Speed

1шт.

27

5176962

GEAR,56T

Z 56, Driven I Speed

1шт.

28

5175989

MAIN SHAFT,312.5mm

1шт.

29

5176919

GEAR,28T

Z 28, Reverse

1шт.

30

5176895

THRUST WASHER,22.1mm ID x 40mm OD x 1mm Thk

2шт.

31

5176908

NEEDLE BEARING,22mm ID x 28mm OD x 17mm W

1шт.

32

5176909

PIN,22mm OD x 50mm L

1шт.

33

5183643

ROLL PIN,7.8mm OD x 32mm L

1шт.

Выбрано товаров: 40
