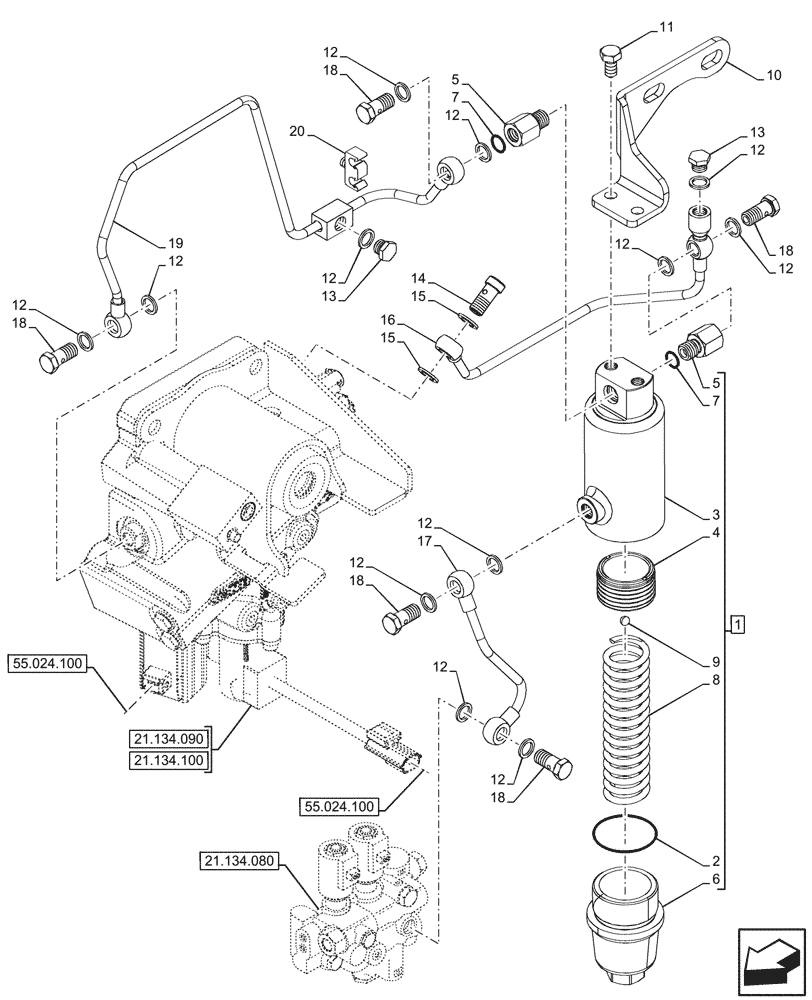

Запчасти Case IH FARMALL 80CL (21.134.110) - VAR - 743968 - POWERSHUTTLE, TRANSMISSION CONTROL VALVE, COMPONENTS, ACCUMULATOR, CREEPER, HI-LO (21) - TRANSMISSION

1

87622906

ACCUMULATOR

ASSY, Incl 2 - 9

1шт.

2

14458880

O-RING,40.94mm ID x 2.62" Width

1шт.

3

5177700

BODY

1шт.

4

5137480

PISTON,40mm OD

1шт.

5

87622903

BODY

2шт.

6

5137482

SHIELD

1шт.

7

14437685

O-RING,9.30mm ID x 2.40mm

2шт.

8

5137481

SPRING,Compression, 32mm OD x 122mm L

1шт.

9

20063450

BALL

1шт.

10

5187886

BRACKET

1шт.

11

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

2шт.

12

10260960

SEALING WASHER,M10.2 x 14 x 1.5

12шт.

13

11903011

PLUG,M10 x 1 x 11, Cl5.8

2шт.

14

5181983

HYD CONNECTOR,M10 x 1 27mm L

1шт.

15

10284460

WASHER,M10.2 x 16 x 1.5, Copper

2шт.

16

5191298

RIGID TUBE

1шт.

17

5191273

RIGID TUBE

1шт.

18

5176180

BANJO BOLT,M10 x 1 x 17.5mm

5шт.

19

84521337

RIGID TUBE

1шт.

20

14581180

SPRING CLIP,2x6.3mm OD x 37mm L

1шт.
