Запчасти Case IH FARMALL 80CL (90.120.090) - VAR - 332155 - SEAT MECHANICAL SUSPENSION, VINYL, COMPONENTS, W/O CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS

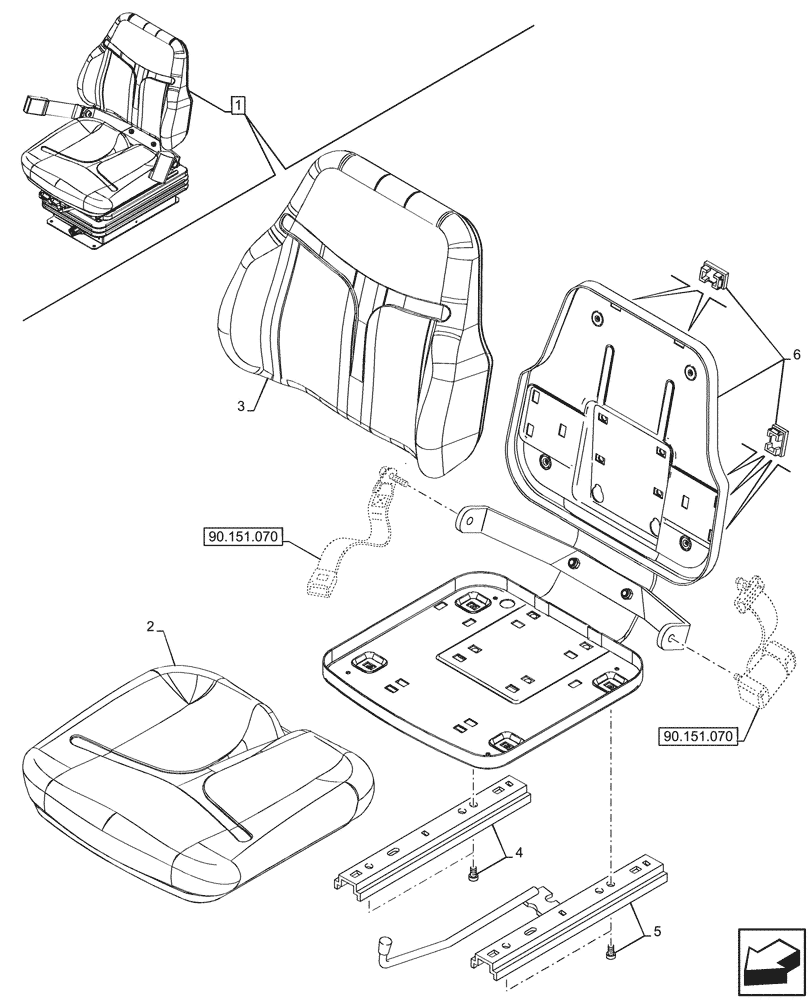

Схема запчастей Case IH FARMALL 80CL - (90.120.090) - VAR - 332155 - SEAT MECHANICAL SUSPENSION, VINYL, COMPONENTS, W/O CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.151.070
4
3
5
1
2
6
90.151.070

Артикул

Название

Примечание

Количество

1

47916751

DRIVER SEAT

PVC Wheat, ASSY, Incl 2 - 6

1шт.

See also Seat Components in Figure 90.151.070

1шт.

2

87753618

SEAT CUSHION

1шт.

3

87753631

BACKREST

1шт.

4

47136924

GUIDE

1шт.

5

47130725

GUIDE

1шт.

6

87752799

DRIVER SEAT

1шт.

Выбрано товаров: 7
