(90.120.070) - VAR - 332155 - SEAT MECHANICAL SUSPENSION, VINYL, W/O CAB

Запчасти Case IH FARMALL 80CL (90.120.070) - VAR - 332155 - SEAT MECHANICAL SUSPENSION, VINYL, W/O CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS

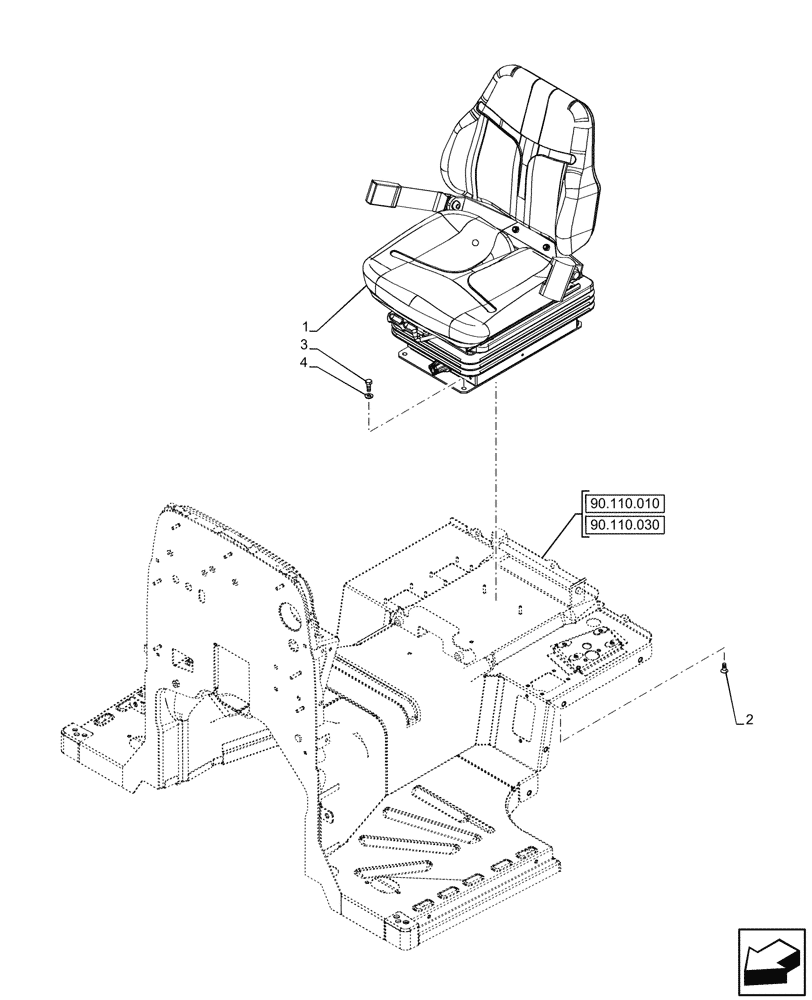

Схема запчастей Case IH FARMALL 80CL - (90.120.070) - VAR - 332155 - SEAT MECHANICAL SUSPENSION, VINYL, W/O CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.110.010
1
4
3
2
90.110.030
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47916751

DRIVER SEAT

PVC

1шт.

2

5182236

HEX SOC SCREW,FLAT, M8 x 1.25 x 20mm, Cl 8.8

4шт.

3

5183645

SCREW,Hex, M8 x 22mm, Cl 8.8

4шт.

4

5182251

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.9mm Thk

4шт.

Выбрано товаров: 4
