(90.116.180) - VAR - 330273, 743509 - REAR FENDER, GUARD, W/O CAB

Запчасти Case IH FARMALL 80CL (90.116.180) - VAR - 330273, 743509 - REAR FENDER, GUARD, W/O CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS

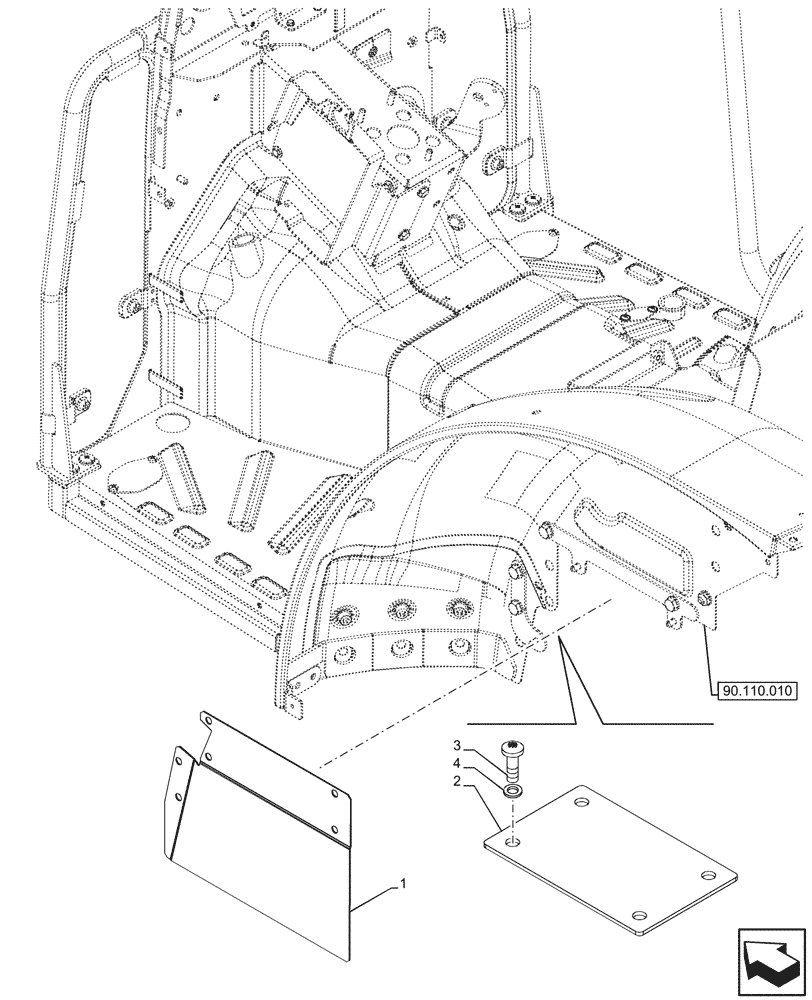

Схема запчастей Case IH FARMALL 80CL - (90.116.180) - VAR - 330273, 743509 - REAR FENDER, GUARD, W/O CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.110.010
1
4
3
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5173743

COVER

Lower

1шт.

2

5181060

COVER PLATE

1шт.

3

13274211

SCREW,Pozidriv Pan Hd, M5 x 16mm, Cl 5.8, Full Thd

4шт.

4

14496307

WASHER,5.3mm ID x 10mm OD x 1mm Thk

4шт.

Выбрано товаров: 4
