(90.116.120) - HANDRAIL, W/O CAB

Запчасти Case IH FARMALL 80CL (90.116.120) - HANDRAIL, W/O CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS

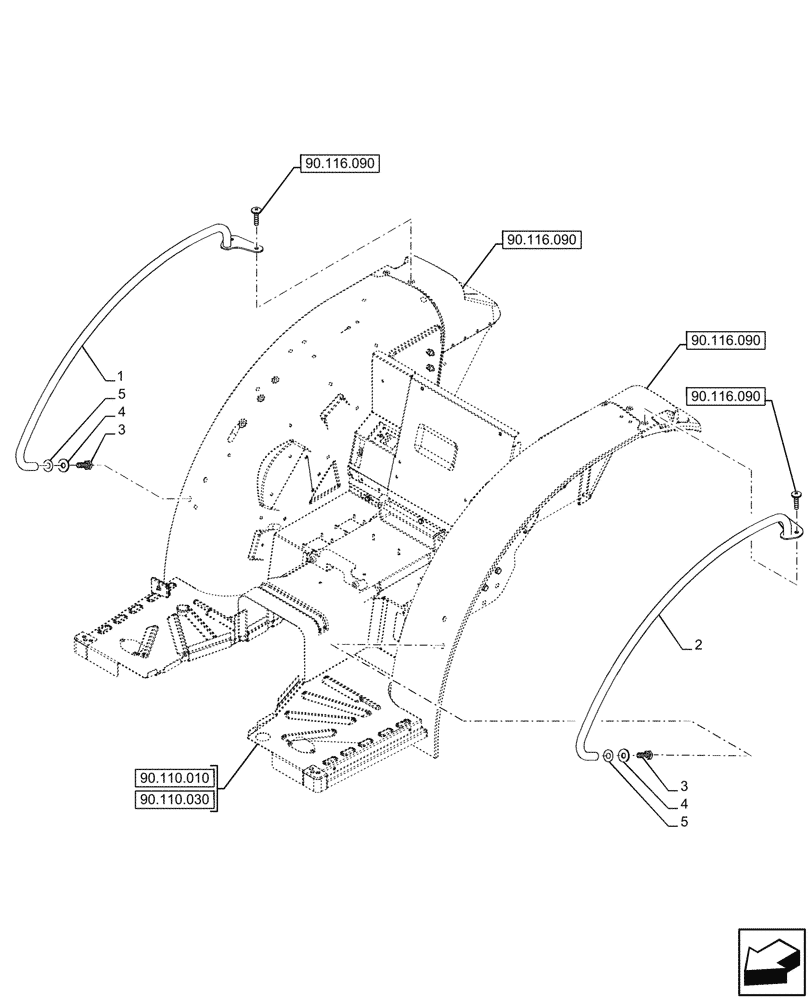

Схема запчастей Case IH FARMALL 80CL - (90.116.120) - HANDRAIL, W/O CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.116.090
3
5
3
4
1
2
4
5
90.110.030
90.110.010
90.116.090
90.116.090
90.116.090
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5180552

HANDRAIL

1шт.

2

5180555

HANDRAIL

1шт.

3

11306924

BOLT,Hex, M10 x 1.25 x 30, 8.8, Full Thd

2шт.

4

11190674

BELLEVILLE WASHER,M10 Bolt Size x 27mm OD

2шт.

5

5185285

GASKET,11mm ID x 25mm OD x 0.1mm L, Zincofix

2шт.

Выбрано товаров: 5
