Запчасти Case IH FARMALL 80CL (90.116.110) - VAR - 759028, 759029 - PLATFORM, GUARD, W/O CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS

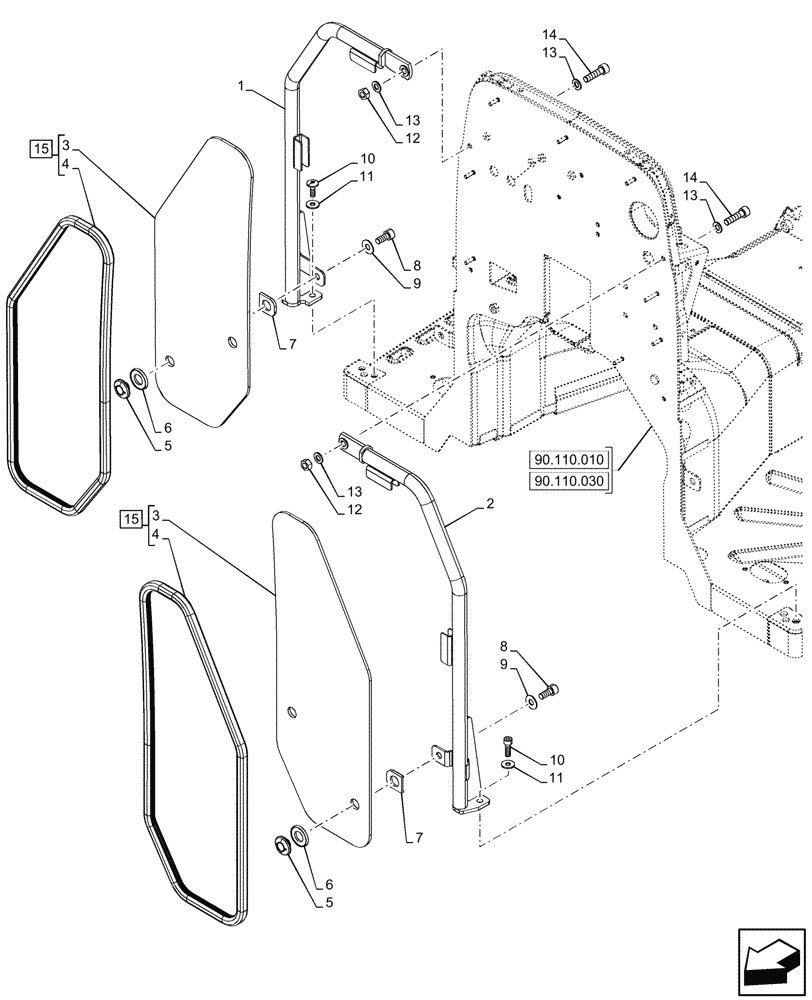

Схема запчастей Case IH FARMALL 80CL - (90.116.110) - VAR - 759028, 759029 - PLATFORM, GUARD, W/O CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.110.010
8
2
4
14
14
13
8
13
6
12
10
13
3
7
12
15
11
5
9
11
9
5
1
6
13
4
10
15
3
7
90.110.030

Артикул

Название

Примечание

Количество

1

47882569

GRIP

RH, Black

1шт.

2

47882565

GRIP

LH, Black

1шт.

3

NSS

NOT SOLD SEPARAT

Front Guard, Incl in 15

1шт.

4

47127460

GASKET,15.5mm W x 16.4mm Thk

1шт.

5

5120540

KNOB

4шт.

6

5124800

SEALING RING,20mm ID x 36mm OD x 5mm Thk

4шт.

7

5113395

SEAL, GLASS,Window, 30mm L

4шт.

8

14302824

HEX SOC SCREW,M8 x 1.25 x 18mm, Cl 8.8, Full Thd

4шт.

9

12625224

LOCK WASHER,8.15mm ID x 20mm OD x 1mm Thk

4шт.

10

14306424

HEX SOC SCREW,M8 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

11

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

4шт.

12

9706690

NUT,M8 x 1.25, Cl 8

2шт.

13

12638504

WASHER,8.15mm ID x 15mm OD x 1.5mm Thk

4шт.

14

14306531

HEX SOC SCREW,M8 x 1.25 x 30mm, Cl 10.9, Full Thd

2шт.

15

5197367

GUARD

ASSY, Incl 3 (Qty 1), 4 (Qty 1)

2шт.

Выбрано товаров: 15
