Запчасти Case IH FARMALL 80CL (90.116.030) - VAR - 744477 - DYNAMIC FRONT FENDER (400MM) (90) - PLATFORM, CAB, BODYWORK AND DECALS

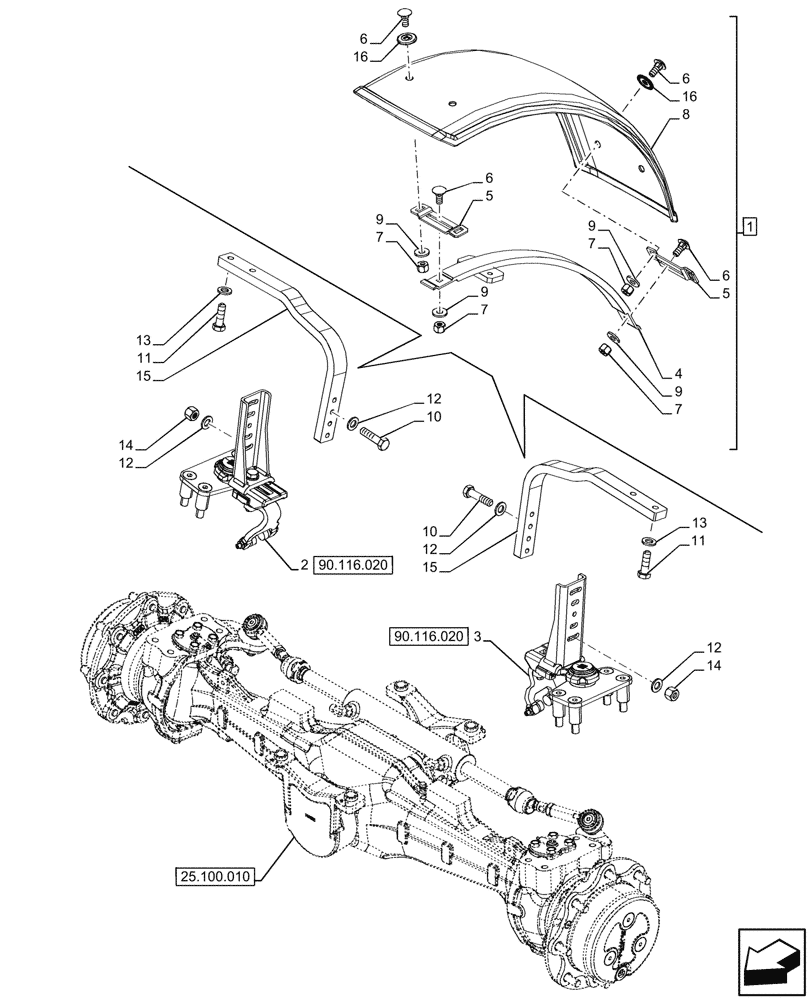

Схема запчастей Case IH FARMALL 80CL - (90.116.030) - VAR - 744477 - DYNAMIC FRONT FENDER (400MM) (90) - PLATFORM, CAB, BODYWORK AND DECALS
25.100.010
11
9
15
9
15
12
1
14
5
13
11
8
12
14
16
10
7
6
12
16
2
7
6
7
9
13
12
10
6
5
4
7
3
9
6
90.116.020
90.116.020

Артикул

Название

Примечание

Количество

1

48078550

FENDER,400mm

ASSY, 400mm, Incl 4 - 9, 16

2шт.

2

48119186

RH, ASSY

HUB

1шт.

3

48119187

LH, ASSY

HUB

1шт.

4

47132609

SUPPORT

2шт.

5

NSS

NOT SOLD SEPARAT

Plate, Incl in 1

4шт.

6

47642331

SCREW

12шт.

7

84100524

NUT,M10 x 1.5, Cl 8

12шт.

8

48078548

COVER

2шт.

9

14496601

WASHER,10.5mm ID x 21mm OD x 2mm Thk

12шт.

10

15540821

SCREW,Hex, M12 x 1.25 x 50mm, Cl 8.8

8шт.

11

11112821

BOLT,Hex, M12 x 40mm, Cl 8.8, Full Thd

8шт.

12

14496704

WASHER,13mm ID x 24mm OD x 2.5mm Thk

16шт.

13

11190774

BELLEVILLE WASHER,M12 Bolt Size x 24mm OD x 2.8mm Thk

8шт.

14

16105014

LOCK NUT,M12 x 1.25

8шт.

15

48119185

SUPPORT

2шт.

16

48022217

WASHER,15mm ID x 45mm OD x 6.2mm Thk

8шт.

Выбрано товаров: 16
