Запчасти Case IH FARMALL 80CL (90.110.180) - VAR - 759028, 759029 - ROPS, COVER (90) - PLATFORM, CAB, BODYWORK AND DECALS

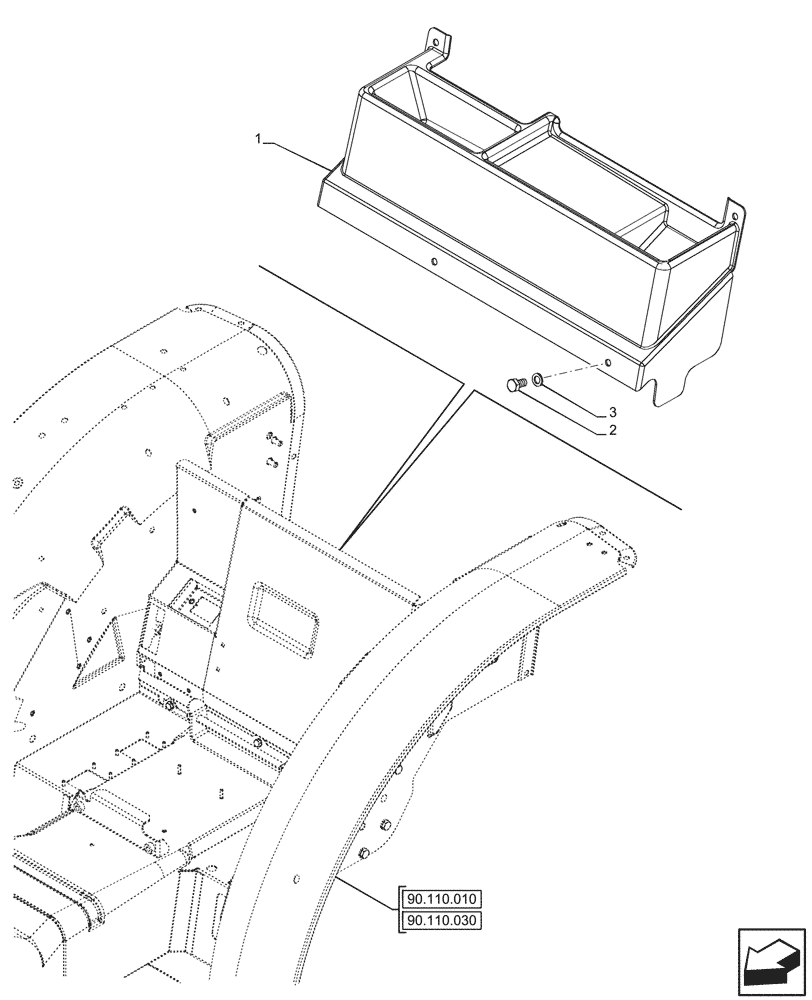

Схема запчастей Case IH FARMALL 80CL - (90.110.180) - VAR - 759028, 759029 - ROPS, COVER (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.110.010
3
2
1
90.110.030

Артикул

Название

Примечание

Количество

1

48052758

COVER

1шт.

2

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

4шт.

3

14499401

WASHER,8.4mm ID x 14mm OD x 1.6mm Thk

4шт.
