Запчасти Case IH FARMALL 80CL (90.110.100) - VAR - 759028, 759029 - PLATFORM, SUPPORT, FRONT, W/O CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS

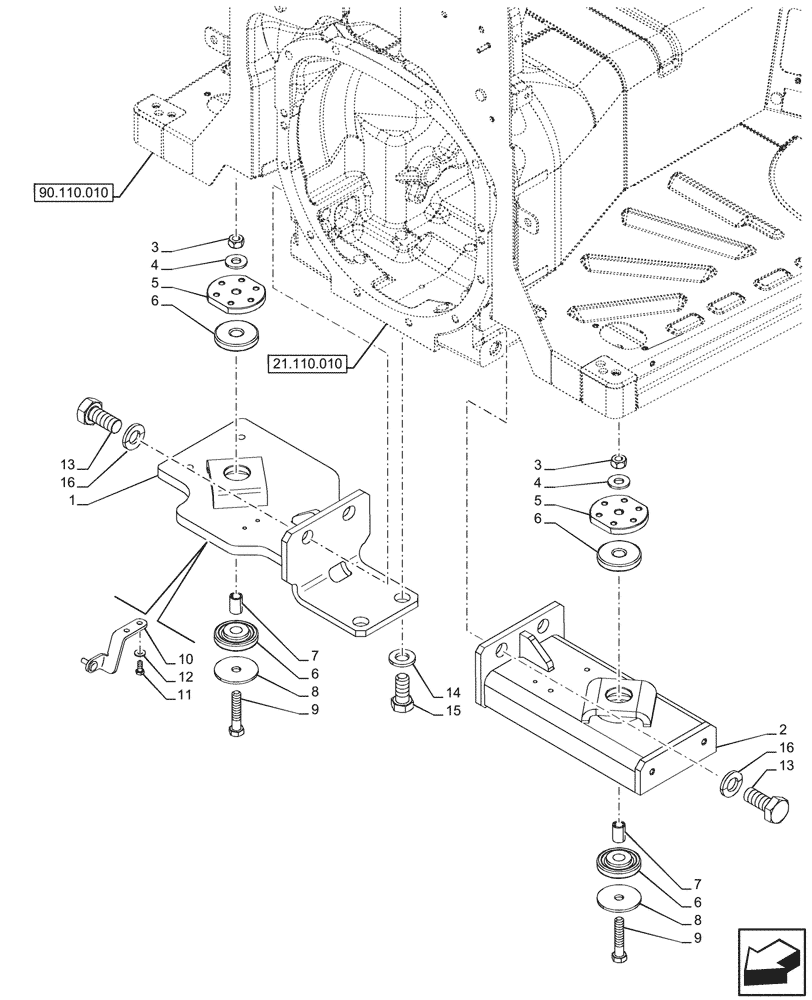

Схема запчастей Case IH FARMALL 80CL - (90.110.100) - VAR - 759028, 759029 - PLATFORM, SUPPORT, FRONT, W/O CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.110.010
13
16
6
15
2
6
16
8
6
6
10
4
3
5
7
14
8
12
13
5
9
1
11
4
9
3
21.110.010
7

Артикул

Название

Примечание

Количество

1

48097534

RH, Black

PLATE

1шт.

2

47762366

SUPPORT

LH, Black

1шт.

3

16101521

NUT,M12 x 1.25, Cl 10

2шт.

4

11190879

BELLEVILLE WASHER,M12 Bolt Size x 30mm OD

2шт.

5

47636589

PLATE

2шт.

6

5187860

LOCKING RING,16.5mm ID x 60mm OD x 15mm Thk

4шт.

7

5187859

SPACER,12.2mm ID x 17mm OD x 25mm L

2шт.

8

47501799

WASHER,12.5mm ID x 60mm OD x 3.5mm Thk

2шт.

9

15233034

SCREW,M12 x 1.25 x 60mm L, Cl 10.9

2шт.

10

48012749

SUPPORT

Black, Protection

1шт.

11

10902280

BOLT,Hex, M6 x 16mm

2шт.

12

12646601

WASHER,6.15mm ID x 15mm OD x 1.5mm Thk

2шт.

13

11124524

BOLT,Hex, M20 x 45, 8.8, Full Thd

6шт.

14

11191674

BELLEVILLE WASHER,M18 Bolt Size x 36mm OD x 4.2mm Thk

2шт.

15

11408524

BOLT,Hex, M18 x 1.5 x 40mm, Cl 8.8

2шт.

16

11191774

BELLEVILLE WASHER,M20 Bolt Size x 38mm OD x 4.6mm Thk

6шт.

Выбрано товаров: 16
