Запчасти Case IH FARMALL 80CL (90.110.095) - VAR - 759028, 759029 - PLATFORM, SUPPORT, REAR, W/O CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS

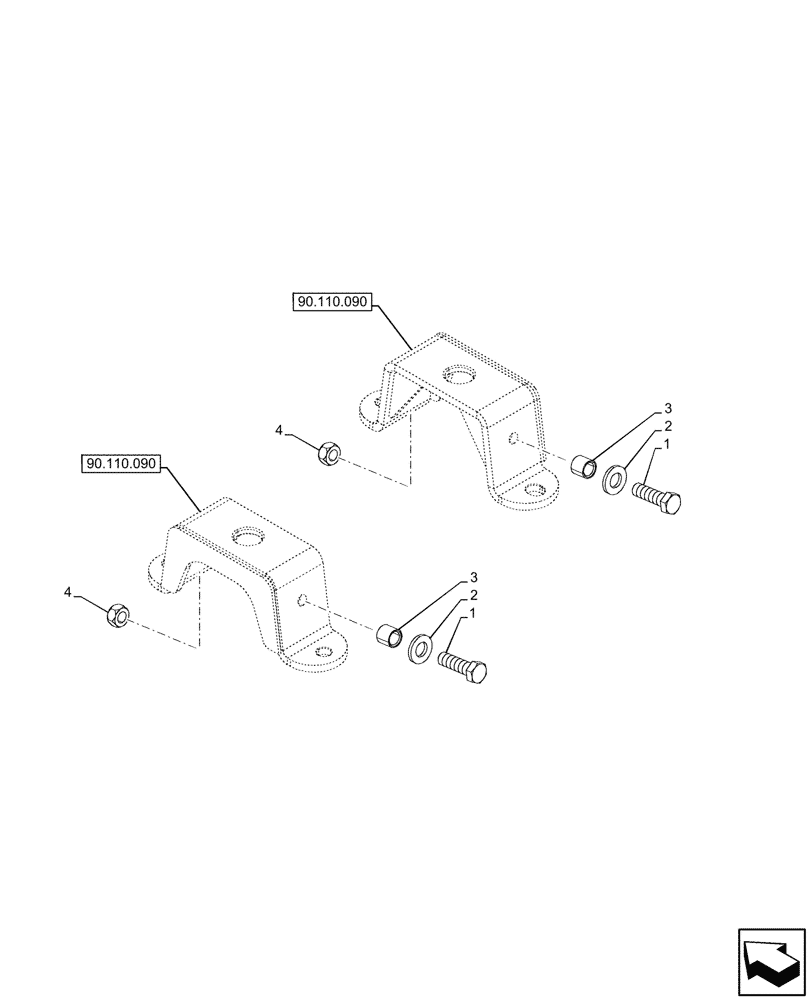

Схема запчастей Case IH FARMALL 80CL - (90.110.095) - VAR - 759028, 759029 - PLATFORM, SUPPORT, REAR, W/O CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.110.090
2
3
1
4
2
3
1
4
90.110.090

Артикул

Название

Примечание

Количество

1

15981034

BOLT,Hex, M16 x 1.5 x 55mm, Cl 10.9

2шт.

2

11191674

BELLEVILLE WASHER,M18 Bolt Size x 36mm OD x 4.2mm Thk

2шт.

3

47868703

BUSHING,17mm ID x 23mm OD x 20mm L

2шт.

4

12164114

NUT,Hex, M16, 1.5mm Pitch, 13mm High, Cl 8

2шт.

Выбрано товаров: 4
