Запчасти Case IH FARMALL 80CL (90.110.070) - VAR - 743968 - PLATFORM, PARKING LOCK, PLATE, W/O CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS

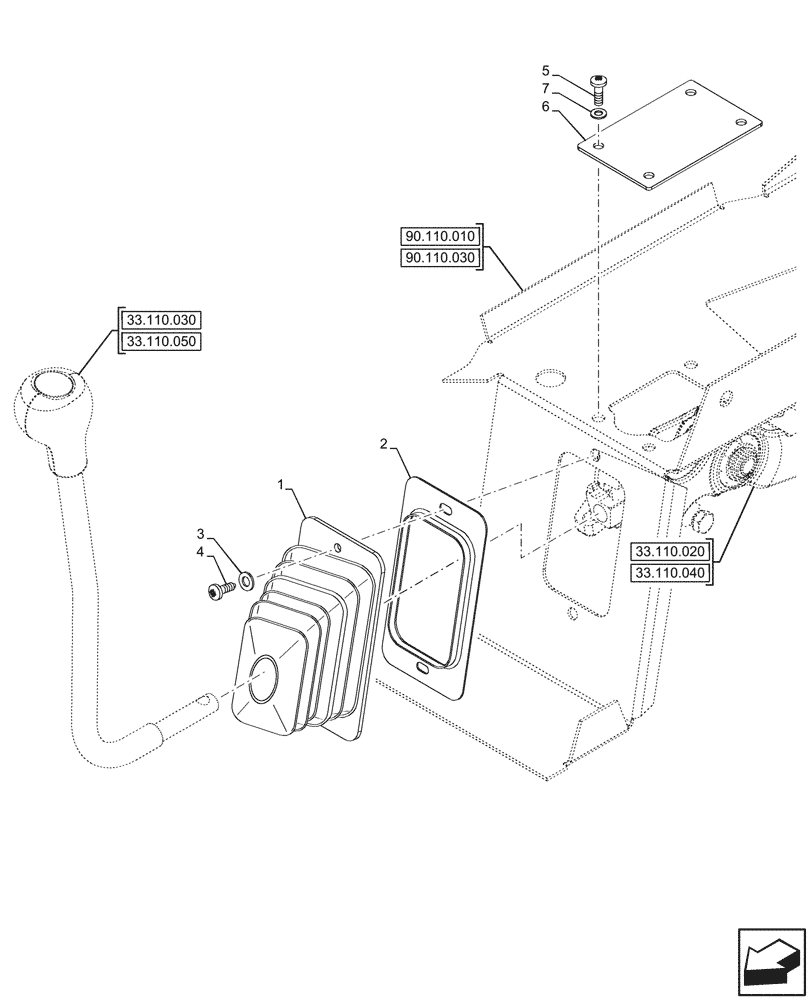

Схема запчастей Case IH FARMALL 80CL - (90.110.070) - VAR - 743968 - PLATFORM, PARKING LOCK, PLATE, W/O CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS
33.110.020
1
6
7
2
5
4
3
33.110.040
90.110.030
90.110.010
33.110.050
33.110.030

Артикул

Название

Примечание

Количество

1

87528777

BELLOWS

1шт.

2

5190510

FRAME

1шт.

3

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

2шт.

4

13283714

SCREW,Pozidriv Pan Hd, M5 x 16mm, Cl 5.8, Full Thd, Cone Pt

2шт.

5

13311017

SCREW,Pozidriv Oval Hd, Csk, M5 x 16mm, Cl 5.8, Full Thd

4шт.

5

13274211

SCREW,Pozidriv Pan Hd, M5 x 16mm, Cl 5.8, Full Thd

4шт.

6

5181060

COVER PLATE

1шт.

7

14496307

WASHER,5.3mm ID x 10mm OD x 1mm Thk

4шт.

Выбрано товаров: 8
