Запчасти Case IH FARMALL 80CL (90.110.030) - VAR - 744478, 759036 - PLATFORM, REAR FENDER, LOW POSITION, W/O CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS

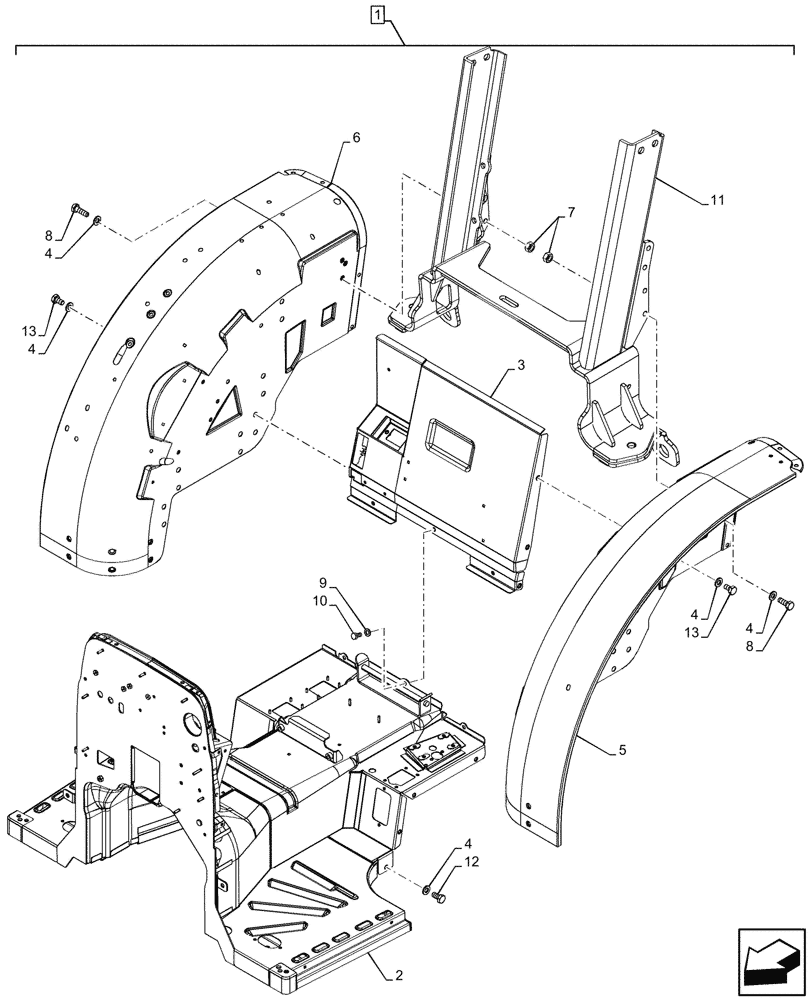

Схема запчастей Case IH FARMALL 80CL - (90.110.030) - VAR - 744478, 759036 - PLATFORM, REAR FENDER, LOW POSITION, W/O CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS
4
4
3
7
4
5
13
8
12
10
4
6
1
8
11
4
9
2
13

Артикул

Название

Примечание

Количество

1

48052947

PLATFORM

ASSY, Incl 2 - 13

1шт.

2

48051177

PLATFORM

Black

1шт.

3

48051195

BULKHEAD

Black

1шт.

4

11190574

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

22шт.

5

48053756

FENDER

LH, Red

1шт.

6

48052946

FENDER

RH, Red

1шт.

7

12164721

NUT,M10 x 1.25, Cl 10

4шт.

8

16204524

BOLT,Hex, M10 x 1.25 x 35mm, Cl 8.8

4шт.

9

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

3шт.

10

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

3шт.

11

48051202

SUPPORT

Black

1шт.

12

15970624

BOLT,Hex, M10 x 1.25 x 22mm, Cl 8.8, Full Thd

6шт.

13

15970424

SCREW,Hex, M10 x 1.25 x 18mm, Cl 8.8, Full Thd

12шт.

Выбрано товаров: 13
