Запчасти Case IH FARMALL 80CL (90.102.050) - VAR - 759028, 759029 - HOOD, FRAME, W/O CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS

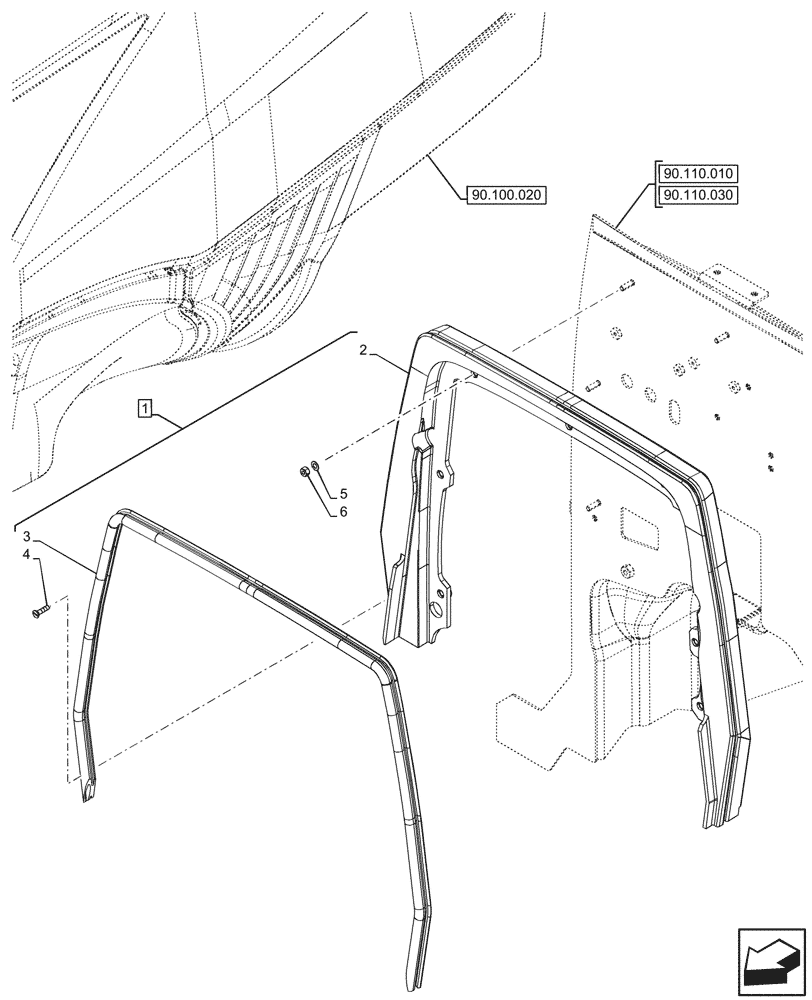

Схема запчастей Case IH FARMALL 80CL - (90.102.050) - VAR - 759028, 759029 - HOOD, FRAME, W/O CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.100.020
5
1
4
6
3
2
90.110.030
90.110.010

Артикул

Название

Примечание

Количество

1

47891994

SEAL,53.5mm Thk

ASSY, Rear Hood, Incl 2 - 4

1шт.

2

NSS

NOT SOLD SEPARAT

Gasket, Incl in 1

1шт.

3

NSS

NOT SOLD SEPARAT

Seal, Incl in 1

1шт.

4

15901601

SCREW,M4 x 16mm

2шт.

5

12601274

WAVE WASHER,6.40mm ID x 12mm OD x 0.50mm, 2.60mm H, STL, DAC

7шт.

6

10720114

NUT,Hex, M6 x 1

7шт.

Выбрано товаров: 6
