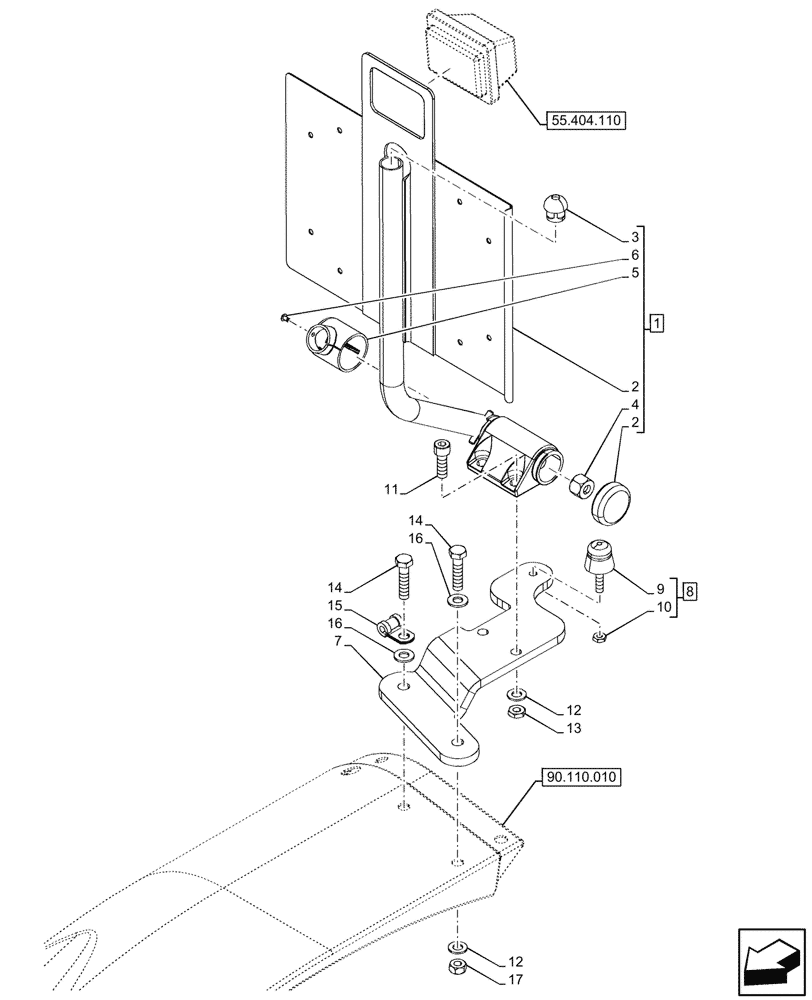

Запчасти Case IH FARMALL 80CL (88.100.080) - LICENCE PLATE HOLDER, W/O CAB (88) - ACCESSORIES

1

5186356

SUPPORT

ASSY, Incl 2 - 6

1шт.

2

NSS

NOT SOLD SEPARAT

Arm Complete, Incl in 1

1шт.

3

5192446

PLUG,7mm

1шт.

4

12574511

LOCK NUT,M10 x 1.25, Cl 8

1шт.

5

5192448

PROTECTION CAP

1шт.

6

5192447

RIVET,3.2mm OD x 39mm L

1шт.

7

47915225

BRACKET

Black

1шт.

8

87316914

RUBBER PAD,8mm ID x 20mm L

ASSY, Incl 9, 10

1шт.

9

NSS

NOT SOLD SEPARAT

Rubber Pad, Incl in 8

1шт.

10

10725914

LOCK NUT,M6 x 1, Cl 04

1шт.

11

14306431

HEX SOC SCREW,M8 x 1.25 x 25mm, Cl 10.9, Full Thd

2шт.

12

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

4шт.

13

16102314

THIN NUT,M8 x 1.25, Cl 04

2шт.

14

87015748

BOLT,Hex, M8 x 35mm, Cl 8.8, Full Thd

2шт.

15

10449890

CLAMP,6mm, Coat, 9mm Bolt Hole, P Type

1шт.

16

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.

17

16100824

NUT,M8, Cl 10

2шт.
