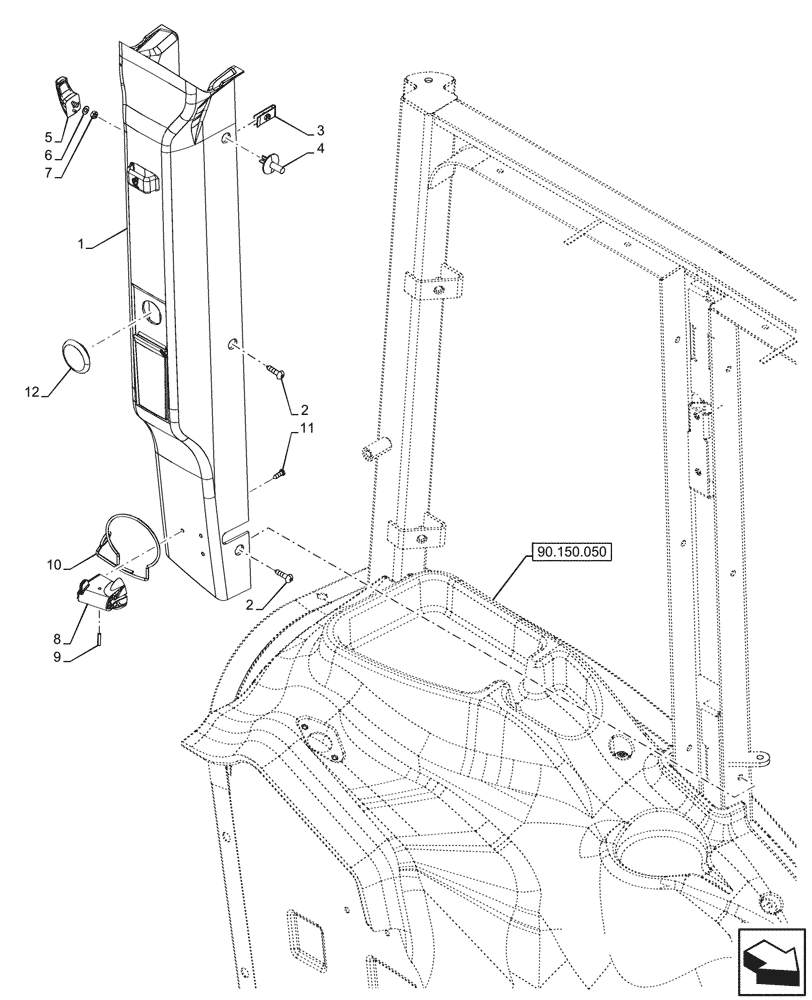

Запчасти Case IH FARMALL 110CL (90.160.240) - VAR - 759031, 759033 - TRIM PANEL, LH, CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47973548

COVER

LH

1шт.

2

15688507

SELF-TAP SCREW,Cross Pan Hd, M4.8 x 22mm

2шт.

3

87326498

SPRING,29.2mm L x 12mm W

2шт.

4

5162852

RIVET,7.3mm OD x 12mm L

5шт.

5

5178468

COAT HOOK

1шт.

6

11181474

BELLEVILLE WASHER,M4 Bolt Size x 9mm OD x 0.7mm Thk

1шт.

7

10794014

NUT,M4, Cl 8

1шт.

8

5179028

BLOCK

1шт.

9

14161774

PIN,3mm OD x 16mm L

1шт.

10

5179689

SPRING,18/68mm OD

1шт.

11

16082204

SCREW,Cross Pan Hd, M3 x 10mm, Hi-Lo

3шт.

12

14506987

PLUG,30mm, Black

1шт.
