Запчасти Case IH FARMALL 110CL (90.156.030) - VAR - 759031, 759033 - REAR, WINDOW, CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS

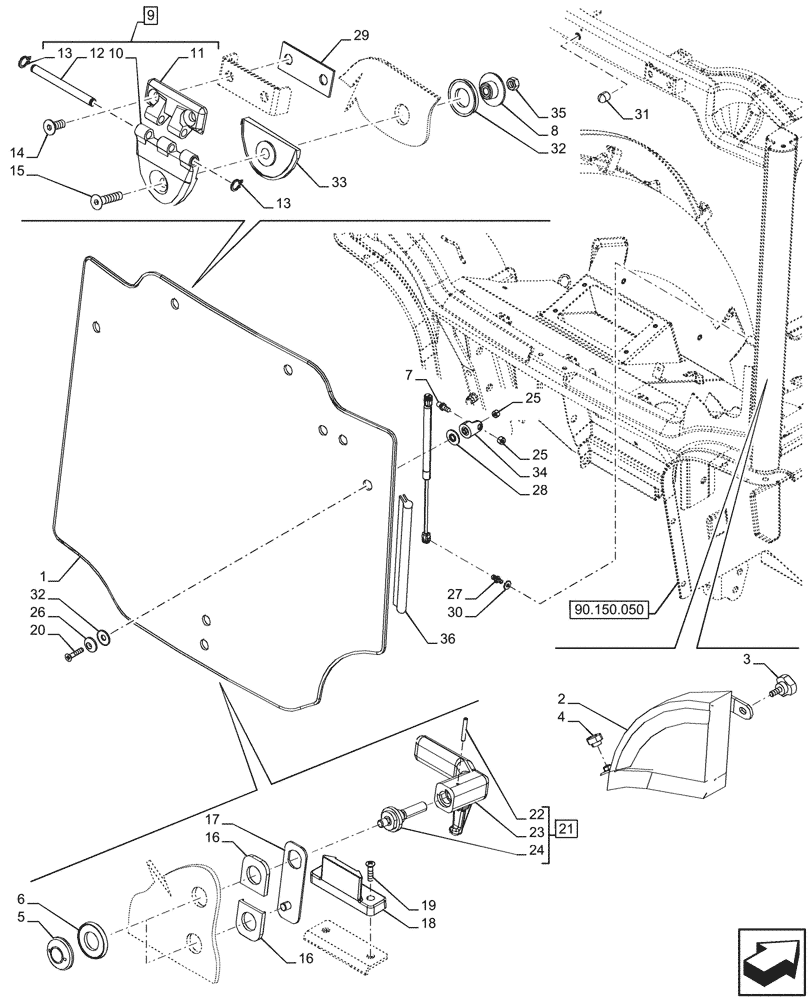

Схема запчастей Case IH FARMALL 110CL - (90.156.030) - VAR - 759031, 759033 - REAR, WINDOW, CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.150.050
14
12
36
4
8
10
19
35
29
27
25
13
1
32
20
15
13
30
18
3
6
33
24
5
31
28
34
16
11
9
2
17
26
23
22
32
21
16
7
25

Артикул

Название

Примечание

Количество

1

5196371

CAB GLASS ASSY

Rear

1шт.

2

47419295

RUBBER SEAL,33.5mm Thk

1шт.

3

44911869

KNOB

1шт.

4

87473444

KNOB

1шт.

5

5120540

KNOB

2шт.

6

5124800

SEALING RING,20mm ID x 36mm OD x 5mm Thk

2шт.

7

44910148

BALL STUD,M8 x 1.25

2шт.

8

44911601

STOP

2шт.

9

5185205

HINGE

ASSY, Incl 10 - 13

2шт.

10

NSS

NOT SOLD SEPARAT

Hinge, Incl in 9

2шт.

11

NSS

NOT SOLD SEPARAT

Hinge, Incl in 9

2шт.

12

84155532

PIN,7.6mm OD x 87.8mm L

2шт.

13

11065676

SNAP RING,M8, Ext

4шт.

14

5182236

HEX SOC SCREW,FLAT, M8 x 1.25 x 20mm, Cl 8.8

4шт.

15

5182238

HEX SOC SCREW,CSS, M8 x 1.25 x 35mm, Cl 8.8

2шт.

16

5113395

SEAL, GLASS,Window, 30mm L

2шт.

17

5186866

PLATE

1шт.

18

87656439

STRIKER PLATE

1шт.

19

13311217

SCREW,Pozidriv Oval Hd, Csk, M5 x 20mm, Cl 5.8, Full Thd

2шт.

20

13304117

SCREW,Pozidriv Flat Hd, Csk, M8 x 40mm, Cl 5.8

2шт.

21

87658582

HANDLE

ASSY, for Mobile Wind-Screen, Incl 22 - 24

1шт.

See also Handle Components in Figure 90.156.020

1шт.

22

5183752

PIN,26mm OD x 64.5mm L

1шт.

23

14159970

LOCK PIN,M2.5 x 20, Slotted

1шт.

24

NSS

NOT SOLD SEPARAT

Handle, Incl in 21

1шт.

25

16104417

NUT,M8

4шт.

26

44910150

SEALING WASHER,8.5mm ID x 39mm OD x 13mm Thk

2шт.

27

87603835

BALL STUD,10mm D, M8 x 13mm

M8 x 13mm, Sferical D 10 DIN 71803

2шт.

28

44910537

GAS STRUT

2шт.

29

44911521

COVER PLATE

2шт.

30

5182303

WASHER,8.4mm ID x 15mm OD x 0.8mm Thk

2шт.

31

5132136

CAP COVER,M8

M8

1шт.

32

44910151

GASKET,15mm ID x 39mm OD x 4.5mm Thk

6шт.

33

5192749

SEAL

RH

1шт.

33

5192646

SEAL,11mm ID x 26mm OD x 10.5mm Thk

LH

1шт.

34

44910149

ARTICULATION

2шт.

35

5182282

NUT,M8 x 1.25 x 10.6mm H, Cl 8

M8

2шт.

36

47956436

SEAL

Rear

1шт.
