Запчасти Case IH FARMALL 110CL (90.151.110) - VAR - 759031, 759033 - REAR VIEW MIRROR, CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS

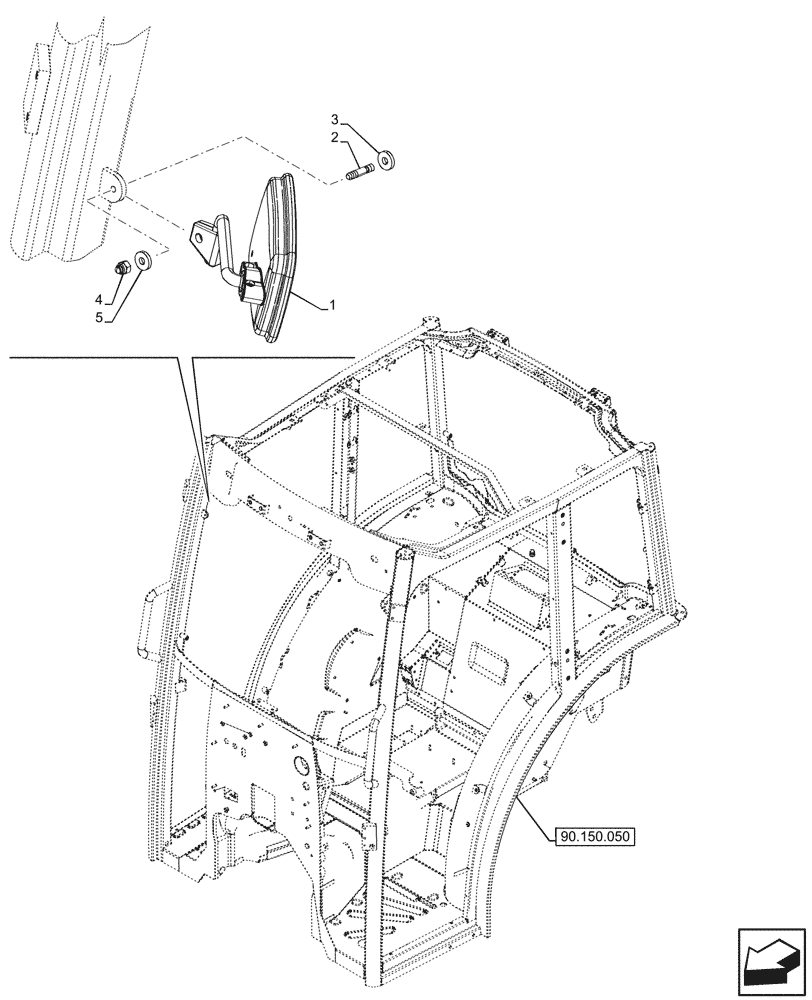

Схема запчастей Case IH FARMALL 110CL - (90.151.110) - VAR - 759031, 759033 - REAR VIEW MIRROR, CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.150.050
5
3
2
1
4

Артикул

Название

Примечание

Количество

1

87665407

REAR VIEW MIRROR

1шт.

2

11500421

STUD,M6 x 9 x 20mm L, Cl 8.8

1шт.

3

12647878

SEALING WASHER,6.15mm ID x 16mm OD x 3mm Thk

1шт.

4

14042277

NUT,M6

1шт.

5

86625265

LOCK WASHER,6.4mm ID x 11mm OD x 0.7mm Thk

1шт.

Выбрано товаров: 5
