Запчасти Case IH FARMALL 110CL (90.150.160) - VAR - 743970, 759021 - FRAME, SUPPORT, W/ MID-MOUNT CONTROL VALVE, CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS

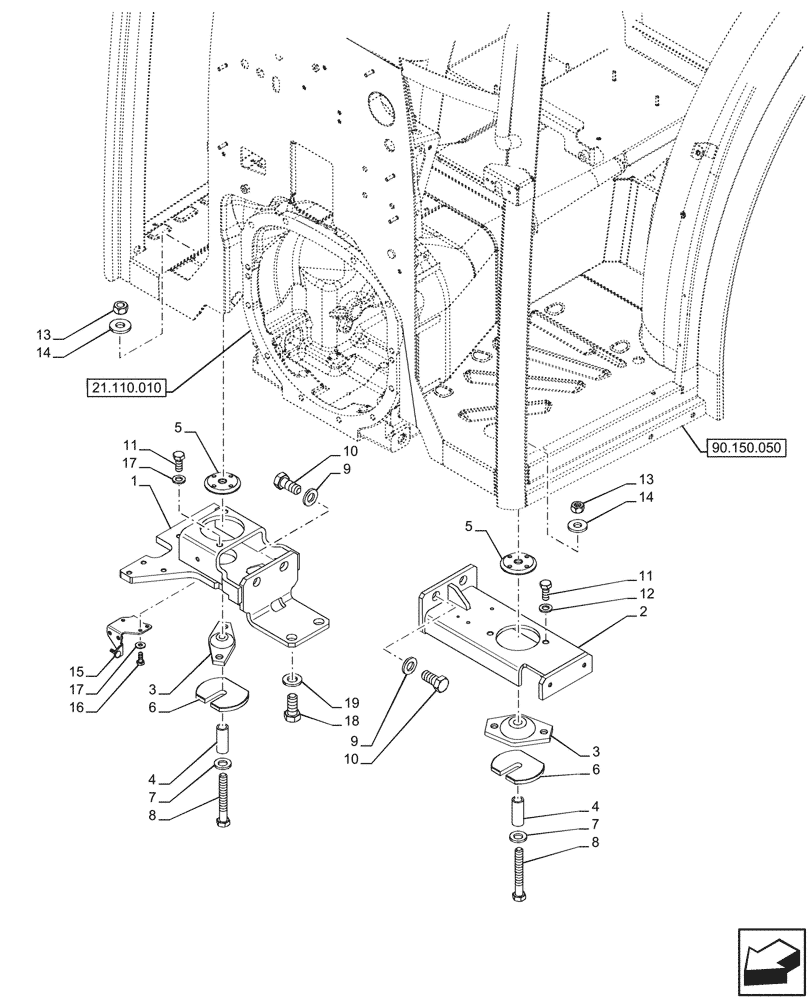

Схема запчастей Case IH FARMALL 110CL - (90.150.160) - VAR - 743970, 759021 - FRAME, SUPPORT, W/ MID-MOUNT CONTROL VALVE, CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.150.050
1
11
5
13
14
3
2
6
12
17
16
14
10
13
11
8
3
18
7
19
6
10
17
8
9
4
15
4
9
5
7
21.110.010

Артикул

Название

Примечание

Количество

1

48080764

RH, Front

SUPPORT

1шт.

2

47647571

SUPPORT

Black

1шт.

3

87688301

ISOLATOR,90mm OD x 64mm L

2шт.

4

5137163

SPACER,17mm ID x 24mm OD x 60mm L

2шт.

5

47590296

PLATE

2шт.

6

47947949

RING,110mm OD x 10mm Thk

2шт.

7

11191574

BELLEVILLE WASHER,M16 Bolt Size x 34mm OD x 3.6mm Thk

2шт.

8

11369634

BOLT,Hex, M16 x 1.5 x 110, 10.9

2шт.

9

11191774

BELLEVILLE WASHER,M20 Bolt Size x 38mm OD x 4.6mm Thk

6шт.

10

11124524

BOLT,Hex, M20 x 45, 8.8, Full Thd

6шт.

11

15540434

SCREW,Hex, M12 x 1.25 x 30mm, Cl 10.9, Full Thd

4шт.

12

11190774

BELLEVILLE WASHER,M12 Bolt Size x 24mm OD x 2.8mm Thk

4шт.

13

12164124

NUT,M16 x 1.5, Cl 8

2шт.

14

83924746

WASHER,17mm ID x 40mm OD x 5mm Thk

2шт.

15

48009249

SUPPORT

Black

1шт.

16

10902280

BOLT,Hex, M6 x 16mm

3шт.

17

12646601

WASHER,6.15mm ID x 15mm OD x 1.5mm Thk

3шт.

18

15984124

SCREW,Hex, M18 x 1.5 x 45mm, Cl 8.8, Full Thd

2шт.

19

11191674

BELLEVILLE WASHER,M18 Bolt Size x 36mm OD x 4.2mm Thk

2шт.

Выбрано товаров: 19
