Запчасти Case IH FARMALL 110CL (90.150.140) - VAR - 743915 - FRAME, SUPPORT, L/ MID-MOUNT CONTROL VALVE, CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS

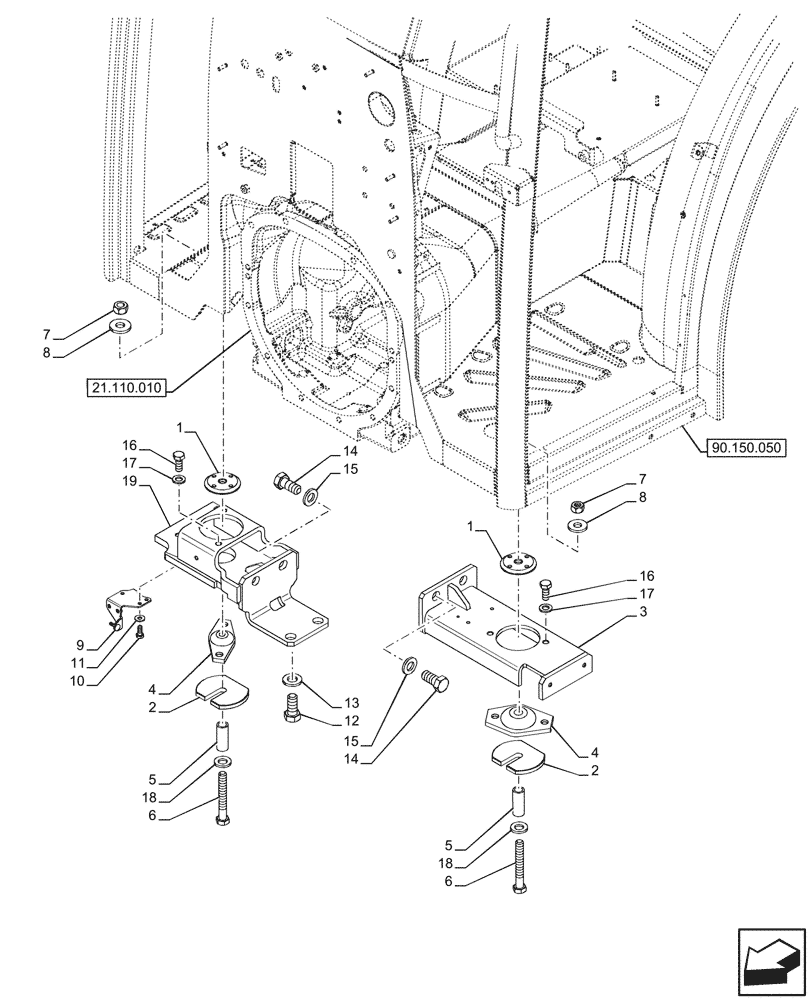

Схема запчастей Case IH FARMALL 110CL - (90.150.140) - VAR - 743915 - FRAME, SUPPORT, L/ MID-MOUNT CONTROL VALVE, CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.150.050
2
5
7
2
14
14
10
1
18
19
4
17
15
1
16
17
9
13
3
7
6
8
8
6
15
16
4
5
12
21.110.010
11
18

Артикул

Название

Примечание

Количество

1

47590296

PLATE

2шт.

2

47947949

RING,110mm OD x 10mm Thk

2шт.

3

47647571

SUPPORT

LH, Front

1шт.

4

87688301

ISOLATOR,90mm OD x 64mm L

2шт.

5

5137163

SPACER,17mm ID x 24mm OD x 60mm L

2шт.

6

11369634

BOLT,Hex, M16 x 1.5 x 110, 10.9

2шт.

7

12164124

NUT,M16 x 1.5, Cl 8

2шт.

8

83924746

WASHER,17mm ID x 40mm OD x 5mm Thk

2шт.

9

48009249

SUPPORT

Black

1шт.

10

10902280

BOLT,Hex, M6 x 16mm

3шт.

11

12646601

WASHER,6.15mm ID x 15mm OD x 1.5mm Thk

3шт.

12

15984124

SCREW,Hex, M18 x 1.5 x 45mm, Cl 8.8, Full Thd

2шт.

13

11191674

BELLEVILLE WASHER,M18 Bolt Size x 36mm OD x 4.2mm Thk

2шт.

14

11124524

BOLT,Hex, M20 x 45, 8.8, Full Thd

6шт.

15

11191774

BELLEVILLE WASHER,M20 Bolt Size x 38mm OD x 4.6mm Thk

6шт.

16

15540434

SCREW,Hex, M12 x 1.25 x 30mm, Cl 10.9, Full Thd

4шт.

17

11190774

BELLEVILLE WASHER,M12 Bolt Size x 24mm OD x 2.8mm Thk

4шт.

18

11191574

BELLEVILLE WASHER,M16 Bolt Size x 34mm OD x 3.6mm Thk

2шт.

19

48008758

SUPPORT

RH, Front

1шт.

Выбрано товаров: 19
