Запчасти Case IH FARMALL 110CL (90.150.130) - VAR - 743915 - FRAME, SUPPORT, L/ MID-MOUNT CONTROL VALVE, CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS

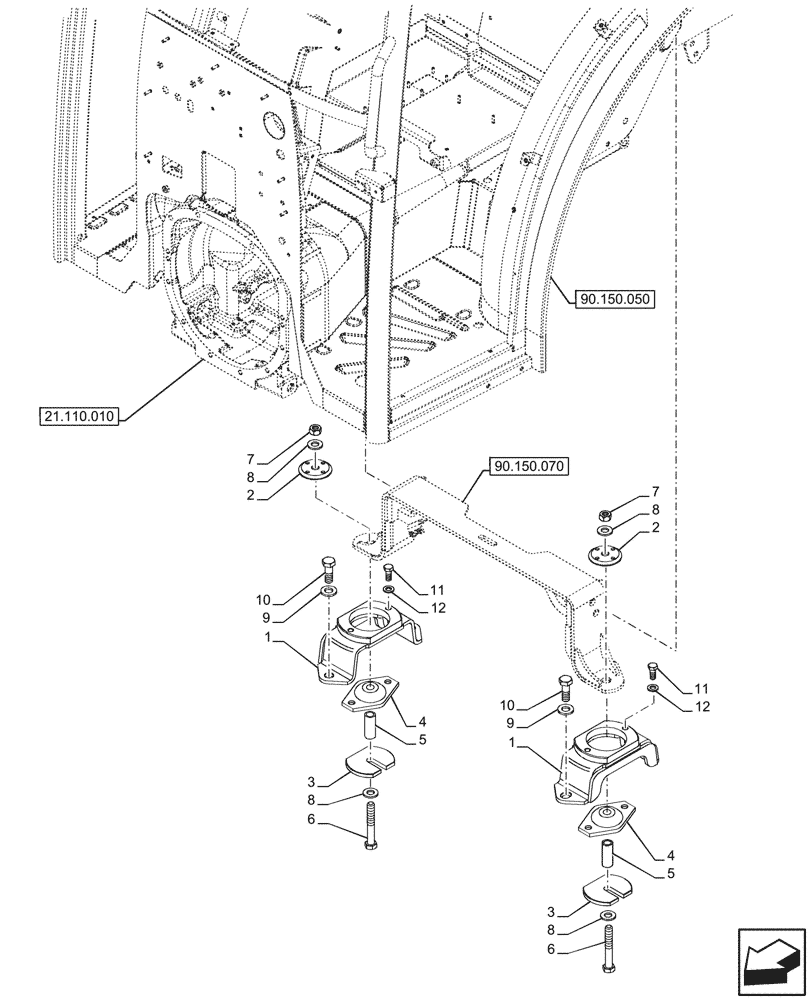

Схема запчастей Case IH FARMALL 110CL - (90.150.130) - VAR - 743915 - FRAME, SUPPORT, L/ MID-MOUNT CONTROL VALVE, CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.150.070
6
9
10
3
6
5
8
8
2
8
1
9
12
4
2
4
7
12
11
8
7
5
10
11
3
1
21.110.010
90.150.050

Артикул

Название

Примечание

Количество

1

47618821

BRACKET

Rear

2шт.

2

47590296

PLATE

2шт.

3

47947949

RING,110mm OD x 10mm Thk

2шт.

4

87688301

ISOLATOR,90mm OD x 64mm L

2шт.

5

5137163

SPACER,17mm ID x 24mm OD x 60mm L

2шт.

6

11369634

BOLT,Hex, M16 x 1.5 x 110, 10.9

2шт.

7

12164124

NUT,M16 x 1.5, Cl 8

2шт.

8

11191574

BELLEVILLE WASHER,M16 Bolt Size x 34mm OD x 3.6mm Thk

4шт.

9

11191679

BELLEVILLE WASHER,M18 Bolt Size x 36mm OD x 4.2mm Thk

4шт.

10

15984334

BOLT,Hex, M18 x 1.5 x 50mm, Cl 10.9, Full Thd

4шт.

11

15540434

SCREW,Hex, M12 x 1.25 x 30mm, Cl 10.9, Full Thd

4шт.

12

11190774

BELLEVILLE WASHER,M12 Bolt Size x 24mm OD x 2.8mm Thk

4шт.

Выбрано товаров: 12
