Запчасти Case IH FARMALL 110CL (90.150.120) - VAR - 759022 - CAB, PLATE (90) - PLATFORM, CAB, BODYWORK AND DECALS

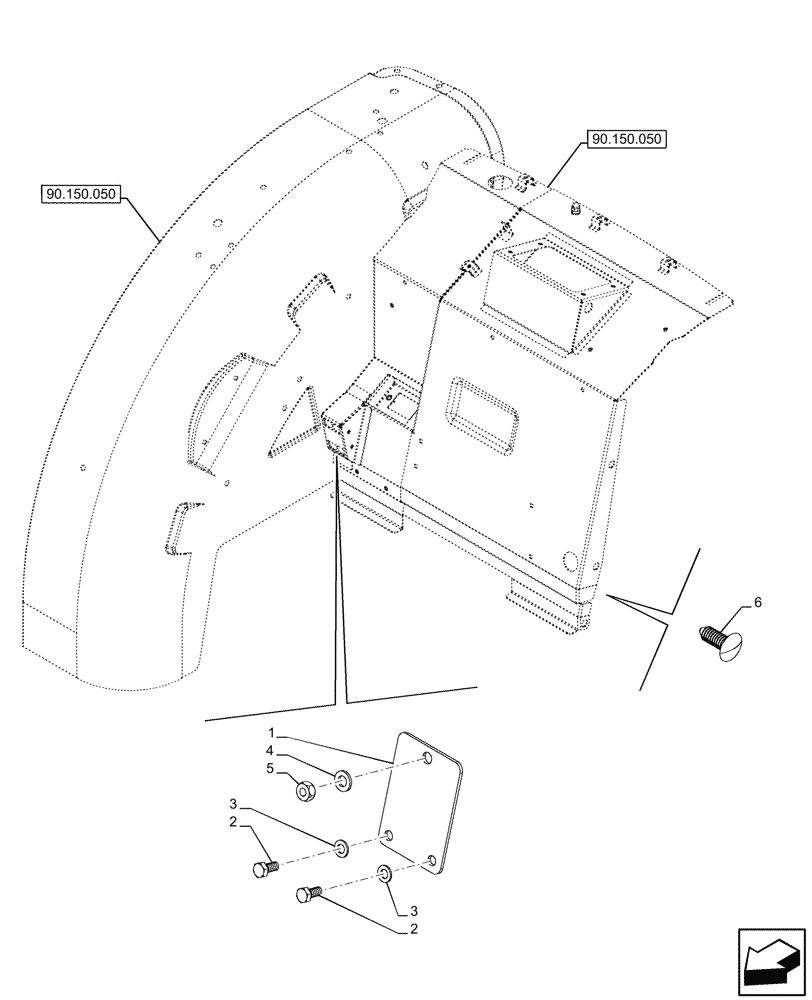

Схема запчастей Case IH FARMALL 110CL - (90.150.120) - VAR - 759022 - CAB, PLATE (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.150.050
2
2
3
3
6
1
4
5
90.150.050

Артикул

Название

Примечание

Количество

1

47841757

PLATE

3rd Commandm, Black

1шт.

2

10977621

BOLT,Hex, M5 x 12mm, Cl 8.8, Full Thd

2шт.

3

86625261

WASHER,5.5mm ID x 10mm OD x 1mm Thk

2шт.

4

10519477

WASHER,6.45mm ID x 12mm OD x 1.5mm Thk

1шт.

5

84268307

NUT,M6 x 0.75, 8 ZND

M6

1шт.

6

81870039

FASTENER,M8 x 1.5 x 22mm

Black

1шт.

Выбрано товаров: 6
