Запчасти Case IH FARMALL 110CL (90.150.110) - VAR - 759033 - ROOF, W/ SUPER ECO CAB, COMPONENTS, CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS

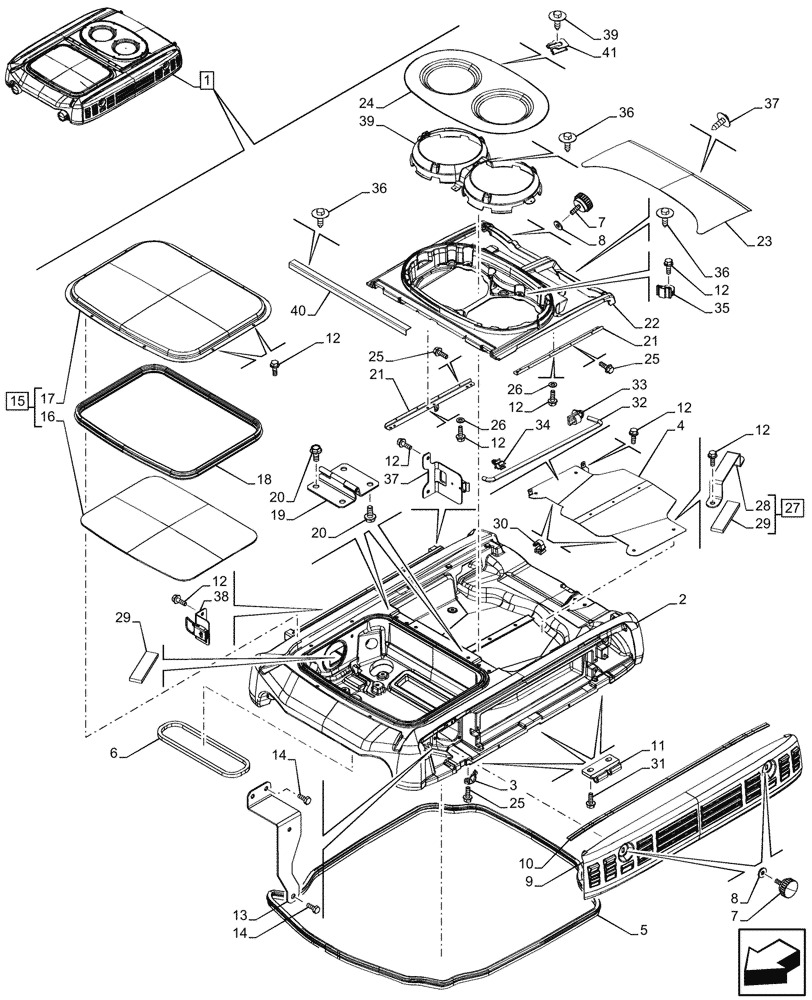

Схема запчастей Case IH FARMALL 110CL - (90.150.110) - VAR - 759033 - ROOF, W/ SUPER ECO CAB, COMPONENTS, CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS
18
39
7
37
8
6
24
16
12
5
12
25
12
13
4
7
35
39
28
40
9
26
8
33
20
1
12
12
21
30
20
12
36
26
25
3
36
32
34
37
23
36
17
14
29
38
14
22
25
19
12
10
11
27
31
15
12
41
2
29
21

Артикул

Название

Примечание

Количество

1

47978396

ROOF

ASSY, Incl 2 - 41

1шт.

See also Roof Components in Figures 50.104.030, 50.200.070, 50.200.080, 55.050.030, 55.050.040, 55.050.050, 55.404.190

1шт.

2

NSS

NOT SOLD SEPARAT

Roof, Blue, Incl in 1

1шт.

3

48041363

STRAP

8шт.

4

48008819

PLATE

1шт.

5

47905853

RUBBER SEAL

1шт.

6

47792463

GASKET,460.5mm L x 134.4mm W x 15mm Thk

1шт.

7

47792468

KNOB

6шт.

8

12647621

WASHER,6.15mm ID x 16mm OD x 2mm Thk

6шт.

9

47701694

GRILLE

2шт.

10

47704874

GASKET,1126mm L x 22.6mm W

2шт.

11

47775735

HINGE

6шт.

12

16286024

FLANGE BOLT,Hex, M6 x 16, Full Thd, Cl 8.8

35шт.

13

47781190

BRACKET

1шт.

14

10444614

HEX SOC SCREW,Hex, M4 x 12mm, Cl 5.8

3шт.

15

48024248

COVER

ASSY, Incl 16, 17

1шт.

16

47773037

HEAT SHIELD

1шт.

17

NSS

NOT SOLD SEPARAT

Cover, Incl in 15

1шт.

18

47704860

GASKET,36mm W x 11mm Thk

1шт.

19

47779864

HINGE

2шт.

20

13839011

BOLT,Hex, M8 x 18mm, Full Thd, R50 IND

8шт.

21

47780537

BRACKET

2шт.

22

NSS

NOT SOLD SEPARAT

Condenser Cover, Blue, Incl in 1

1шт.

23

48036899

GRILLE

1шт.

24

48024252

CONDENSER

1шт.

25

15516401

SELF-TAP SCREW,Self Tap, Hex, M4 x 2.5 x 16mm

10шт.

26

10523401

WASHER,6.15mm ID x 18mm OD x 2mm Thk

6шт.

27

48009245

BRACKET

ASSY, Incl 28, 29 (Qty 1)

1шт.

28

NSS

NOT SOLD SEPARAT

Bracket, Incl in 27

1шт.

29

48021570

GASKET,60mm L x 20mm W x 3mm Thk

3шт.

30

47704875

FASTENER,10mm ID x 13mm Thk x 19.6mm L

2шт.

31

48043746

SCREW,M6 x 16mm L

12шт.

32

47902793

ROD,8mm Thk x 319.2mm L

1шт.

33

47902792

CLIP,33mm L x 14mm W

1шт.

34

47902796

CLIP,Top Entry, 7.5mm ID x 13.8mm L

1шт.

35

47792470

BRACKET

8шт.

36

48041383

SELF-TAP SCREW

27шт.

37

47792477

LATCH

1шт.

38

47779872

LATCH

1шт.

39

47994903

CONVEYOR

1шт.

40

47994901

GRILLE

1шт.

41

48041361

CLIP,6mm ID x 15mm L x 11.5mm W

6шт.

Выбрано товаров: 42
