(90.150.070) - VAR - 759031, 759033 - CAB FRAME, SUPPORT, CAB

Запчасти Case IH FARMALL 110CL (90.150.070) - VAR - 759031, 759033 - CAB FRAME, SUPPORT, CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS

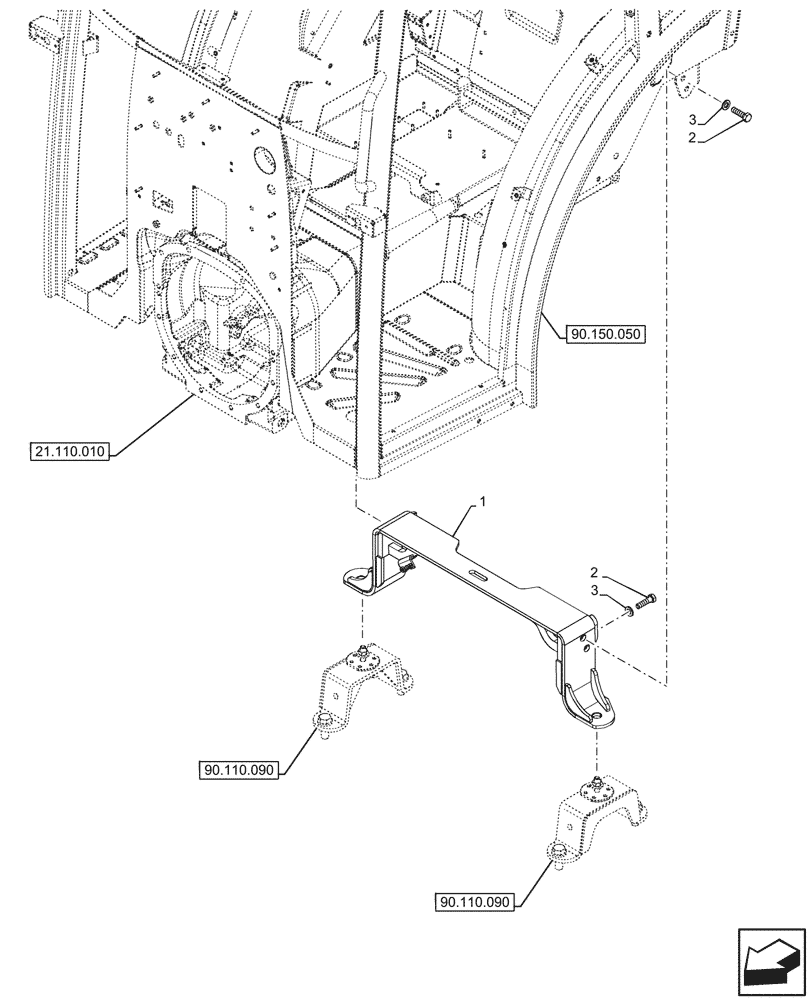

Схема запчастей Case IH FARMALL 110CL - (90.150.070) - VAR - 759031, 759033 - CAB FRAME, SUPPORT, CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.110.090
2
1
2
3
3
21.110.010
90.150.050
90.110.090
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

48034593

SUPPORT

Rear

1шт.

2

15540634

BOLT,Hex, M12 x 1.25 x 40mm, Cl 10.9, Full Thd

6шт.

3

11190774

BELLEVILLE WASHER,M12 Bolt Size x 24mm OD x 2.8mm Thk

6шт.

Выбрано товаров: 3
