Запчасти Case IH FARMALL 110CL (90.124.090) - VAR - 333859 - SEAT, AIR SUSPENSION, COMPONENTS, CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS

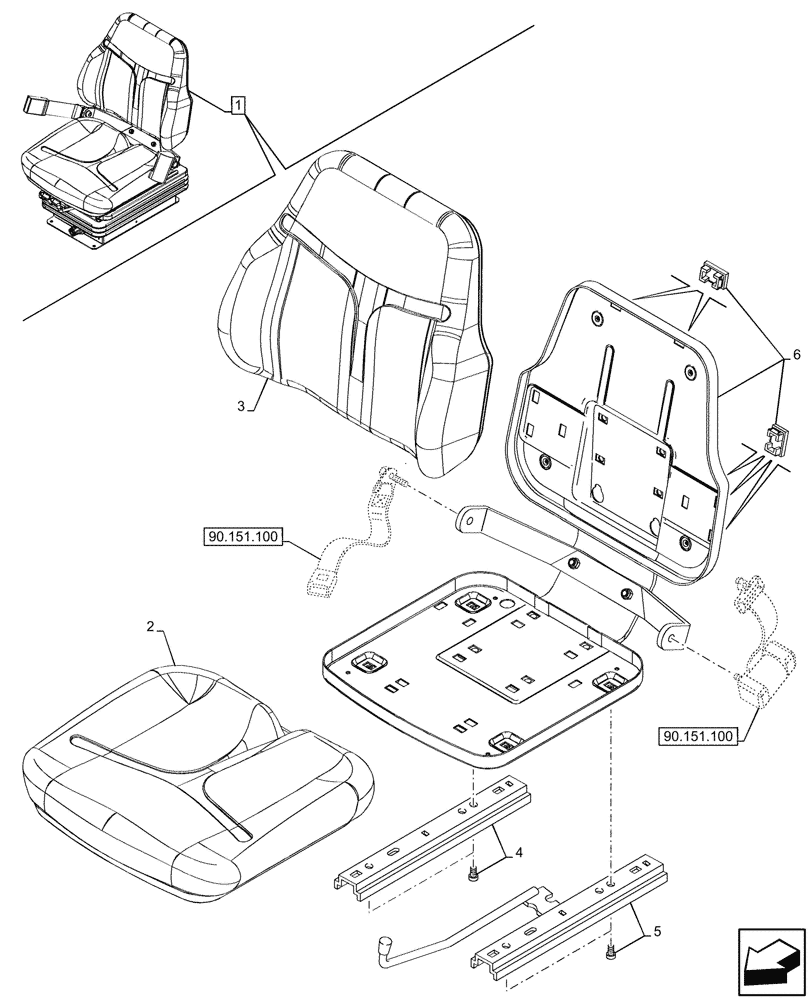

Схема запчастей Case IH FARMALL 110CL - (90.124.090) - VAR - 333859 - SEAT, AIR SUSPENSION, COMPONENTS, CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.151.100
5
3
6
1
2
4
90.151.100

Артикул

Название

Примечание

Количество

1

47916756

DRIVER SEAT

Fabric Case BK5425, ASSY, Incl 2 - 6

1шт.

See also Seat Components in Figure 90.151.100

1шт.

2

87753609

SEAT CUSHION

1шт.

3

87753610

SEAT CUSHION

1шт.

4

47136924

GUIDE

1шт.

5

47130725

GUIDE

1шт.

6

87752799

DRIVER SEAT

1шт.

Выбрано товаров: 7
