(90.118.040) - MIRROR, CAB

Запчасти Case IH FARMALL 110CL (90.118.040) - MIRROR, CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS

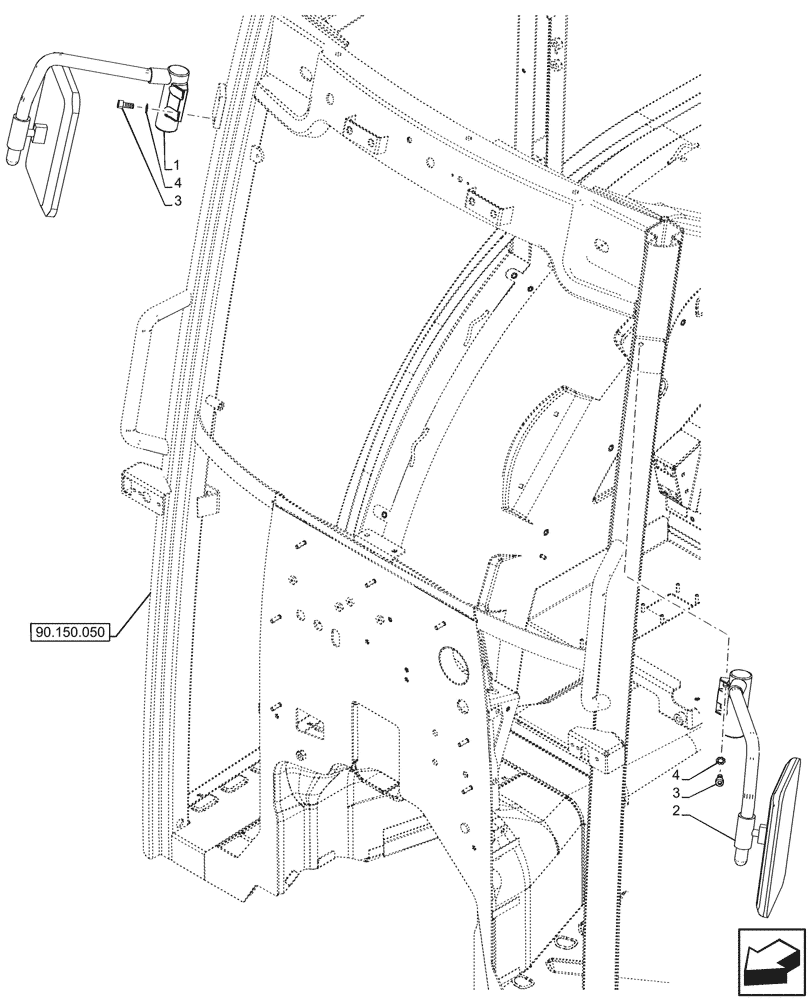

Схема запчастей Case IH FARMALL 110CL - (90.118.040) - MIRROR, CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.150.050
3
3
2
4
4
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5194637

REAR VIEW MIRROR

1шт.

2

5194636

REAR VIEW MIRROR

LH

1шт.

3

14302824

HEX SOC SCREW,M8 x 1.25 x 18mm, Cl 8.8, Full Thd

4шт.

4

5182303

WASHER,8.4mm ID x 15mm OD x 0.8mm Thk

4шт.

Выбрано товаров: 4
