(90.116.170) - HARNESS, GUARD, CAB

Запчасти Case IH FARMALL 110CL (90.116.170) - HARNESS, GUARD, CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS

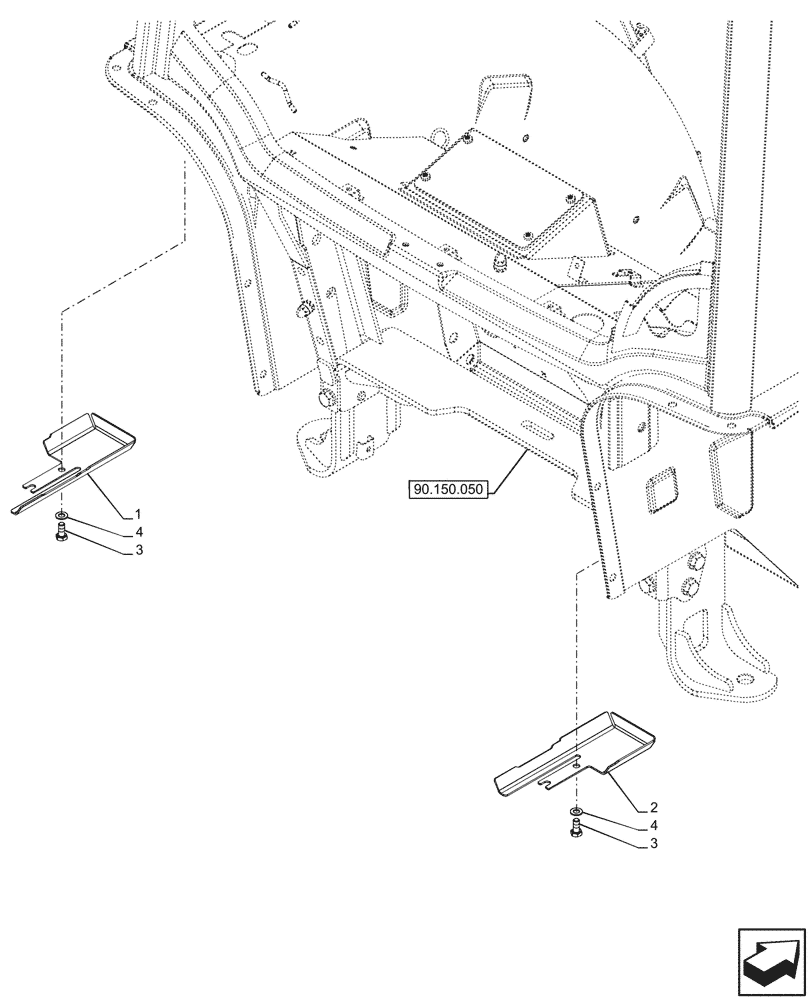

Схема запчастей Case IH FARMALL 110CL - (90.116.170) - HARNESS, GUARD, CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.150.050
3
2
1
4
4
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

48089025

Black

GUARD

1шт.

2

48089022

Black

GUARD

1шт.

3

16043324

BOLT,Hex, M8 x 1.25 x 18mm, Cl 8.8, Full Thd

4шт.

4

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

4шт.

Выбрано товаров: 4
