Запчасти Case IH FARMALL 110CL (90.116.100) - VAR - 743523 - REAR FENDER SPLASH GUARD, W/O CAB, EDC (90) - PLATFORM, CAB, BODYWORK AND DECALS

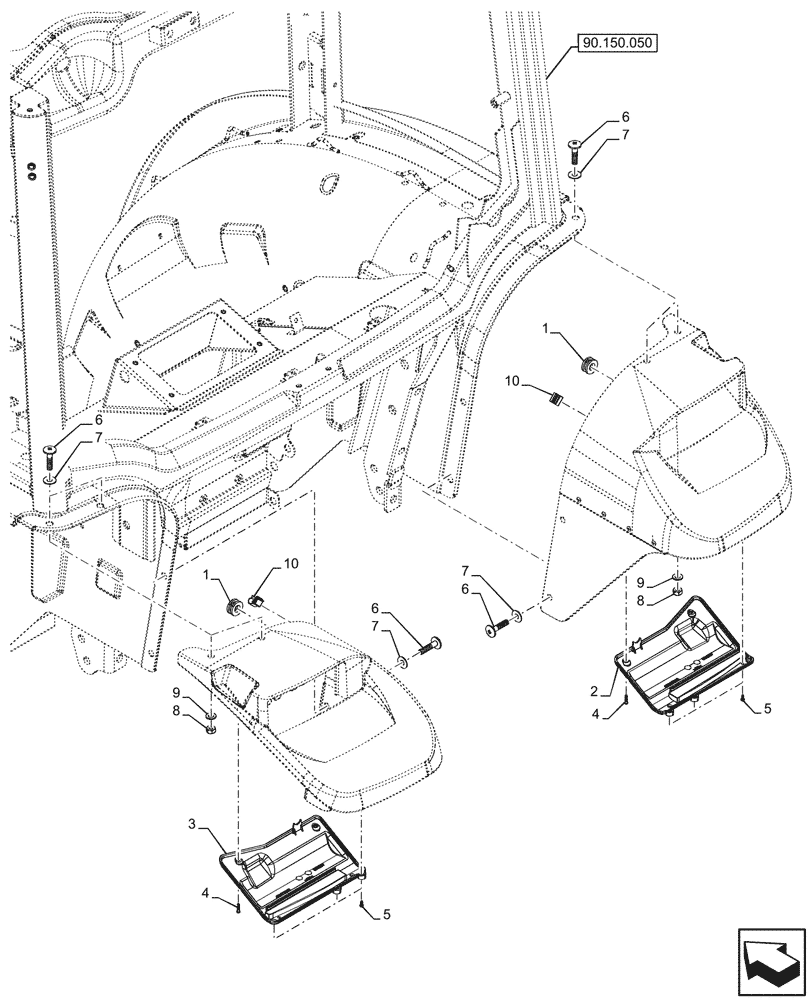

Схема запчастей Case IH FARMALL 110CL - (90.116.100) - VAR - 743523 - REAR FENDER SPLASH GUARD, W/O CAB, EDC (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.150.050
6
10
5
6
1
8
3
7
6
2
1
7
4
9
5
7
4
10
6
8
9
7

Артикул

Название

Примечание

Количество

1

10403080

GROMMET

2шт.

2

47927060

MUDFLAP

RH

1шт.

3

47927062

MUDFLAP

LH

1шт.

4

15901675

SELF-TAP SCREW,Cross Pan Hd, M2.9 x 16mm, SST

4шт.

5

15901475

SELF-TAP SCREW,Cross Pan Hd, M2.9 x 9.50mm, SST

6шт.

6

14781914

SCREW,Cross Rec Cheese Hd, M8 x 20mm, Cl 5.8

6шт.

7

12625224

LOCK WASHER,8.15mm ID x 20mm OD x 1mm Thk

6шт.

8

16100824

NUT,M8, Cl 10

4шт.

9

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

4шт.

10

5177020

STAPLE

2шт.

Выбрано товаров: 10
