(90.108.770) - VAR - 759028, 759029, 759031, 759033 - EMBLEM, HOOD, CASE

Запчасти Case IH FARMALL 110CL (90.108.770) - VAR - 759028, 759029, 759031, 759033 - EMBLEM, HOOD, CASE (90) - PLATFORM, CAB, BODYWORK AND DECALS

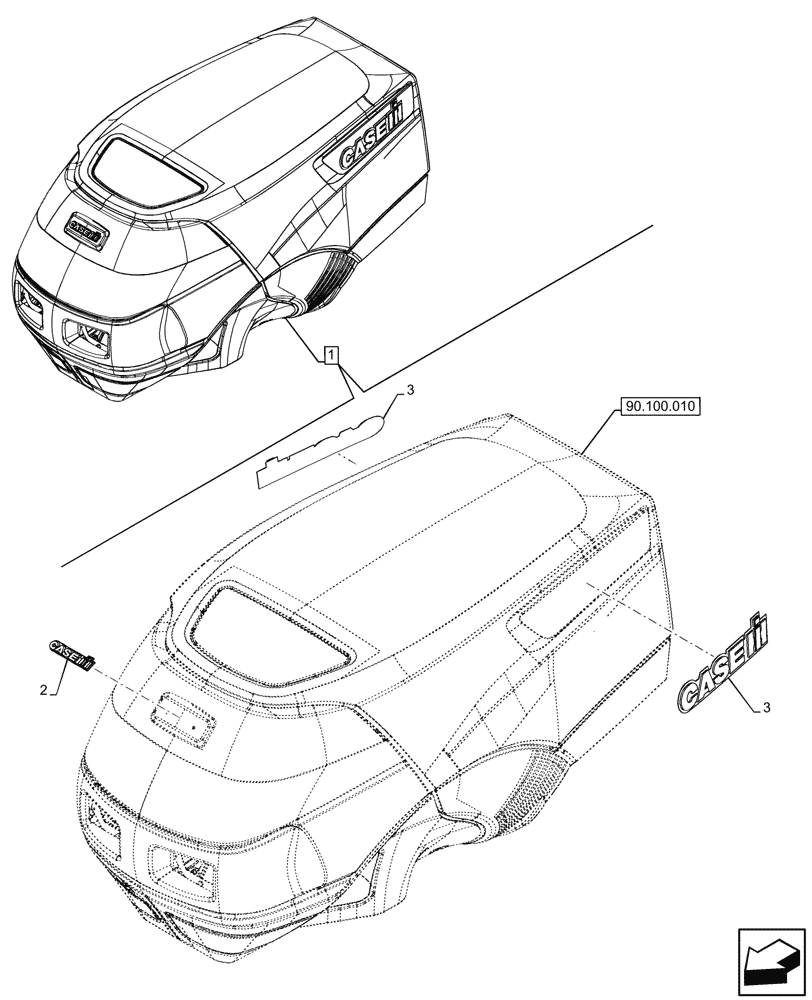

Схема запчастей Case IH FARMALL 110CL - (90.108.770) - VAR - 759028, 759029, 759031, 759033 - EMBLEM, HOOD, CASE (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.100.010
2
3
1
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

48084287

ASSY, CASE, Incl 2, 3

ENGINE HOOD

1шт.

See also Hood Components in Figures 90.100.010, 90.100.030

1шт.

2

87564049

EMBLEM

CASE IH Logo

1шт.

3

87595770

DECAL

CASE IH Drip Mold

2шт.

Выбрано товаров: 4
