(90.105.010) - VAR - 759028, 759029, 759031, 759033 - ISOLATOR

Запчасти Case IH FARMALL 110CL (90.105.010) - VAR - 759028, 759029, 759031, 759033 - ISOLATOR (90) - PLATFORM, CAB, BODYWORK AND DECALS

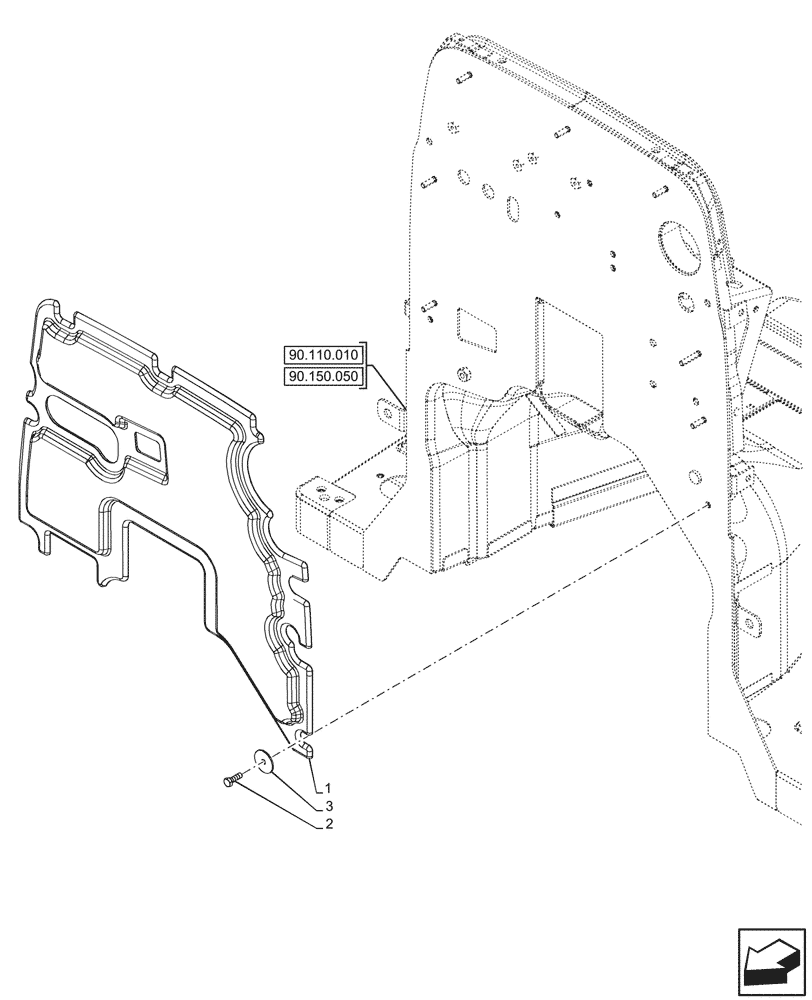

Схема запчастей Case IH FARMALL 110CL - (90.105.010) - VAR - 759028, 759029, 759031, 759033 - ISOLATOR (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.150.050
2
3
1
90.110.010
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47805700

ISOLATOR

1шт.

2

10902424

SCREW,Hex, M6 x 20mm, Cl 8.8, Full Thd

1шт.

3

87542959

WASHER,6.15mm ID x 30mm OD x 1.5mm Thk

1шт.

Выбрано товаров: 3
