(90.100.040) - VAR - 759028, 759029, 759031, 759033 - HOOD, SUPPORT

Запчасти Case IH FARMALL 110CL (90.100.040) - VAR - 759028, 759029, 759031, 759033 - HOOD, SUPPORT (90) - PLATFORM, CAB, BODYWORK AND DECALS

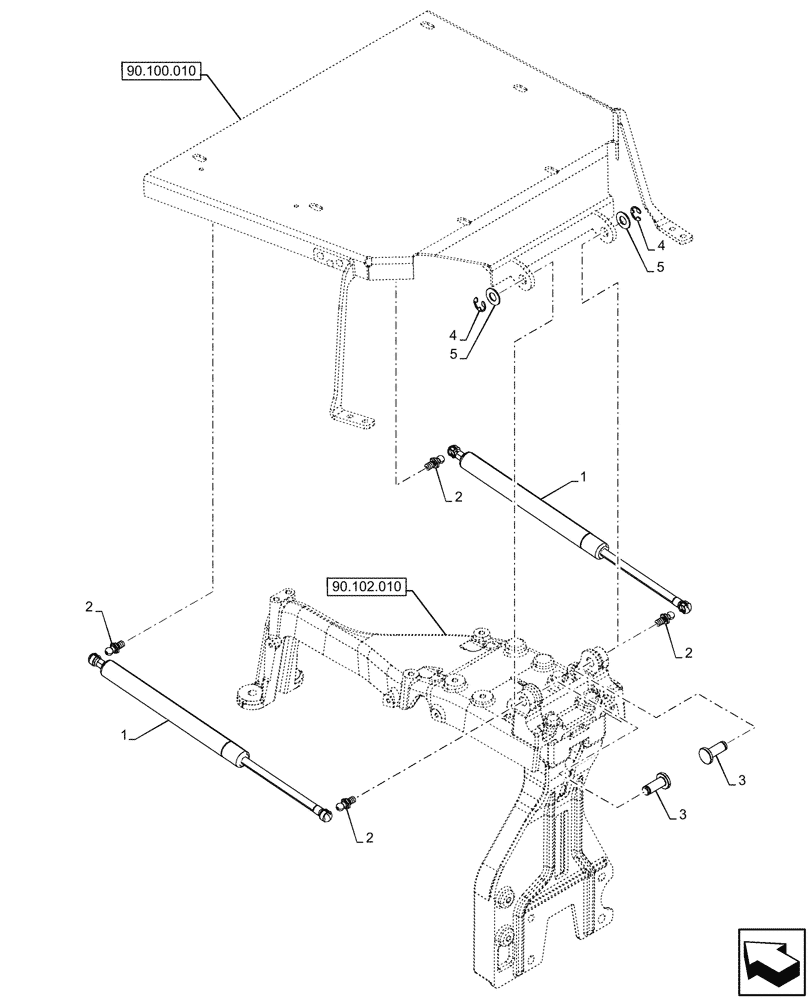

Схема запчастей Case IH FARMALL 110CL - (90.100.040) - VAR - 759028, 759029, 759031, 759033 - HOOD, SUPPORT (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.102.010
2
2
2
2
1
1
5
4
5
3
3
4
90.100.010
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47424479

GAS STRUT

2шт.

2

87603835

BALL STUD,10mm D, M8 x 13mm

M8 x 13mm, Sferical D 10 DIN 71803

4шт.

3

47901208

PIN,12mm OD x 37mm L

2шт.

4

11088174

CIRCLIP,M10

2шт.

5

47899544

WASHER,Plane, 12mm ID x 24mm OD x 1.5mm Thk

2шт.

Выбрано товаров: 5
