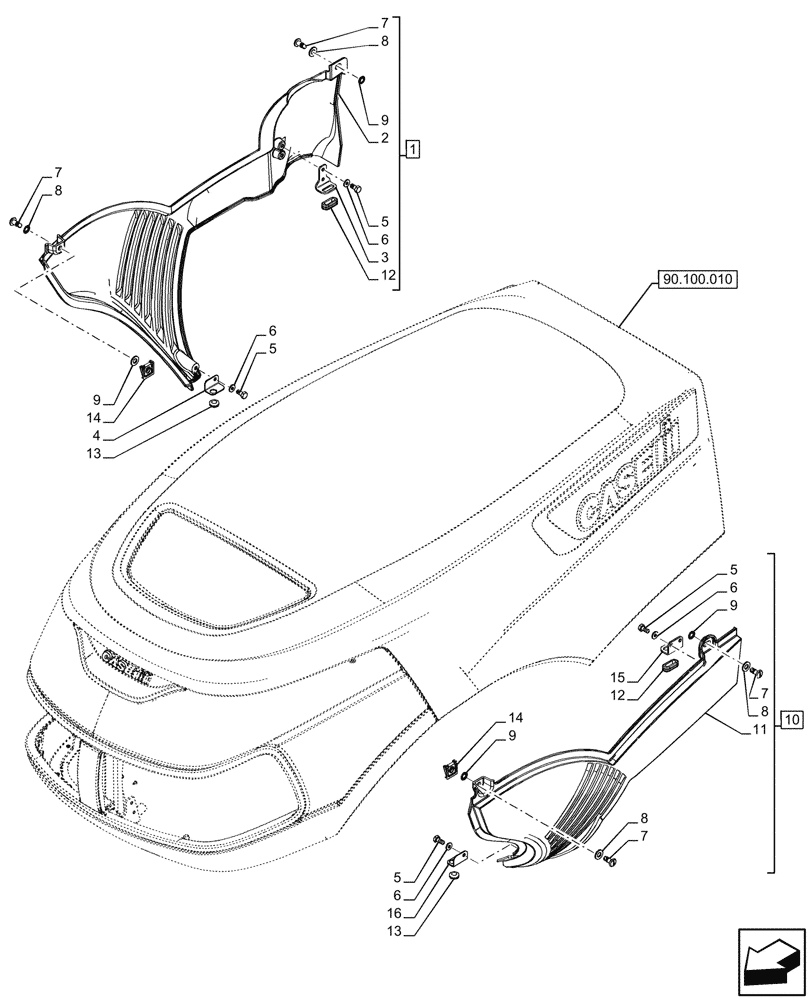

Запчасти Case IH FARMALL 110CL (90.100.020) - VAR - 759028, 759029, 759031, 759033 - HOOD, SIDE PANEL (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47970977

PANEL

ASSY, RH, Incl 2 - 4, 5 (Qty 3), 6 (Qty 3), 7 (Qty 2), 8 (Qty 2), 9 (Qty 2)

1шт.

2

NSS

NOT SOLD SEPARAT

RH Panel, Incl in 1

1шт.

3

48027991

BRACKET

Side Panel

1шт.

4

47918080

BRACKET

1шт.

5

10902131

SCREW,Hex, M6 x 14mm, Cl 10.9, Full Thd

6шт.

6

12647621

WASHER,6.15mm ID x 16mm OD x 2mm Thk

6шт.

7

87585593

FASTENER,9mm ID x 18mm OD

4шт.

8

14496601

WASHER,10.5mm ID x 21mm OD x 2mm Thk

4шт.

9

87313183

RETAINER

4шт.

10

47813171

PANEL

ASSY, LH Side Rear, Incl 5 (Qty 3), 6 (Qty 3), 7 (Qty 2), 8 (Qty 2), 9 (Qty 2), 11, 15, 16

1шт.

11

NSS

NOT SOLD SEPARAT

Panel, LH Side Rear, Incl in 10

1шт.

12

47679203

GROMMET,27.8mm ID x 39mm OD x 10.7mm L

27.8mm ID x 39mm OD x 39mm L

2шт.

13

47679231

GROMMET,10mm ID x 18mm OD x 7.5mm L

10mm ID x 18mm OD

2шт.

14

87313182

CLIP

4шт.

15

47676802

BRACKET

PTD, Hood

1шт.

16

47676814

BRACKET

PTD, Side Panel

1шт.
