(55.525.020) - VAR - 759031, 759033 - FOOT, THROTTLE, W/ CAB

Запчасти Case IH FARMALL 110CL (55.525.020) - VAR - 759031, 759033 - FOOT, THROTTLE, W/ CAB (55) - ELECTRICAL SYSTEMS

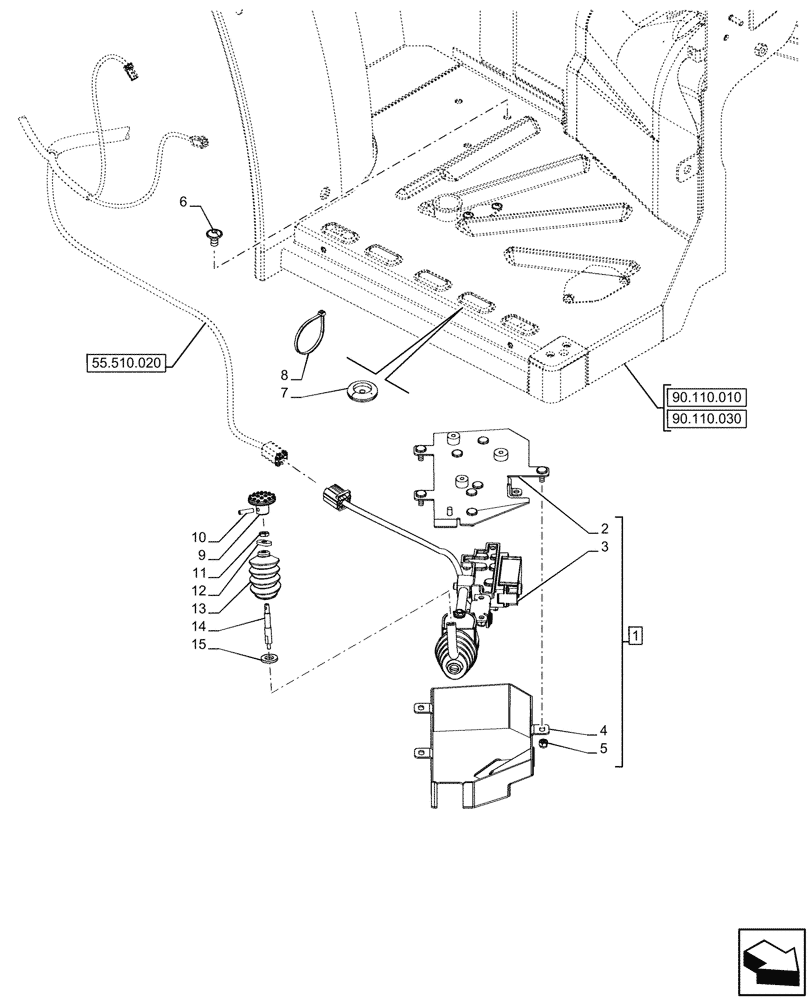

Схема запчастей Case IH FARMALL 110CL - (55.525.020) - VAR - 759031, 759033 - FOOT, THROTTLE, W/ CAB (55) - ELECTRICAL SYSTEMS
55.510.020
1
2
7
5
6
15
12
11
4
8
9
13
3
14
10
90.110.030
90.110.010
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

48103730

ASSY, Incl 2 - 5, 8

THROTTLE

1шт.

2

NSS

NOT SOLD SEPARAT

Throttle, Incl in 1

1шт.

3

NSS

NOT SOLD SEPARAT

Throttle, Incl in 1

1шт.

4

47976918

SHIELD

Black

1шт.

5

NSS

NOT SOLD SEPARAT

Nut, Incl in 1

1шт.

6

2700886

HEX SOC SCREW,Hex, M6 x 4 x 10mm, Cl 10.9 BNZ

M6 x 10mm Cl 10.9 BNZ

3шт.

7

47734265

GROMMET,28mm ID x 46mm OD x 12mm Thk

1шт.

8

14560087

CABLE TIE,103mm, Black

1шт.

9

84232302

SUPPORT

Foot Throttle

1шт.

10

86639254

COILED PIN,6mm OD x 16mm L

1шт.

11

84807411

THIN NUT,Thin, M10 x 1.5, Cl 04

1шт.

12

48098383

WASHER,M10 x 1.5 x 5mm Thk

1шт.

13

47869369

BELLOWS

1шт.

14

48081408

ROD,M6 x 1, M10 x 1.5 x 86mm L

1шт.

15

11194379

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD

1шт.
