(55.510.100) - VAR - 759031 - ROOF, HARNESS, CAB

Запчасти Case IH FARMALL 110CL (55.510.100) - VAR - 759031 - ROOF, HARNESS, CAB (55) - ELECTRICAL SYSTEMS

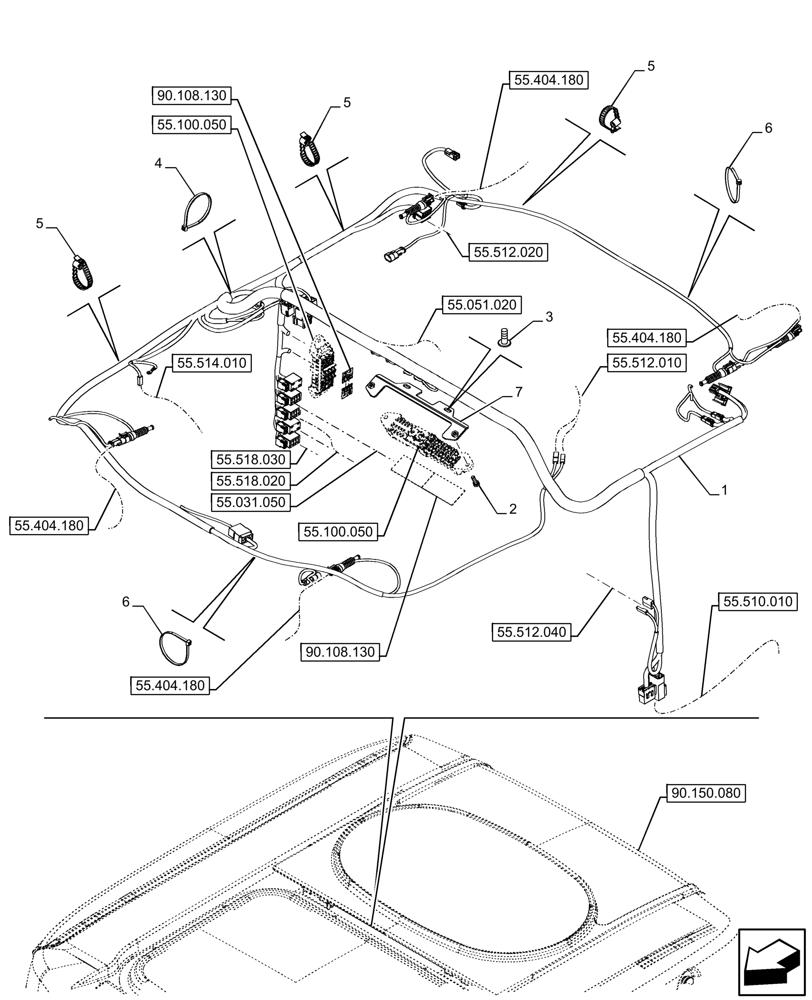

Схема запчастей Case IH FARMALL 110CL - (55.510.100) - VAR - 759031 - ROOF, HARNESS, CAB (55) - ELECTRICAL SYSTEMS
55.514.010
6
3
2
6
1
5
5
5
4
7
55.512.040
55.031.050
55.518.020
55.051.020
55.512.010
90.150.080
55.512.020
55.404.180
55.404.180
55.404.180
55.404.180
90.108.130
90.108.130
55.518.030
55.100.050
55.100.050
55.510.010
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

48037219

WIRE HARNESS

Roof Harness

1шт.

2

10902321

SCREW,Hex, M6 x 18mm, Cl 8.8, Full Thd

2шт.

3

1983037

HEX SOC SCREW,Btn Hd Flg, M6 x 16mm, Cl 10.9

2шт.

4

14560187

COLLAR,199mm L

3шт.

5

85805383

CABLE TIE

11шт.

6

14560287

CABLE TIE,207.00mm L

3шт.

7

48038556

BRACKET

Black

1шт.

Выбрано товаров: 7
