(55.510.030) - MAIN HARNESS, 4WD, W/ SUPERSTEER, CAB

Запчасти Case IH FARMALL 110CL (55.510.030) - MAIN HARNESS, 4WD, W/ SUPERSTEER, CAB (55) - ELECTRICAL SYSTEMS

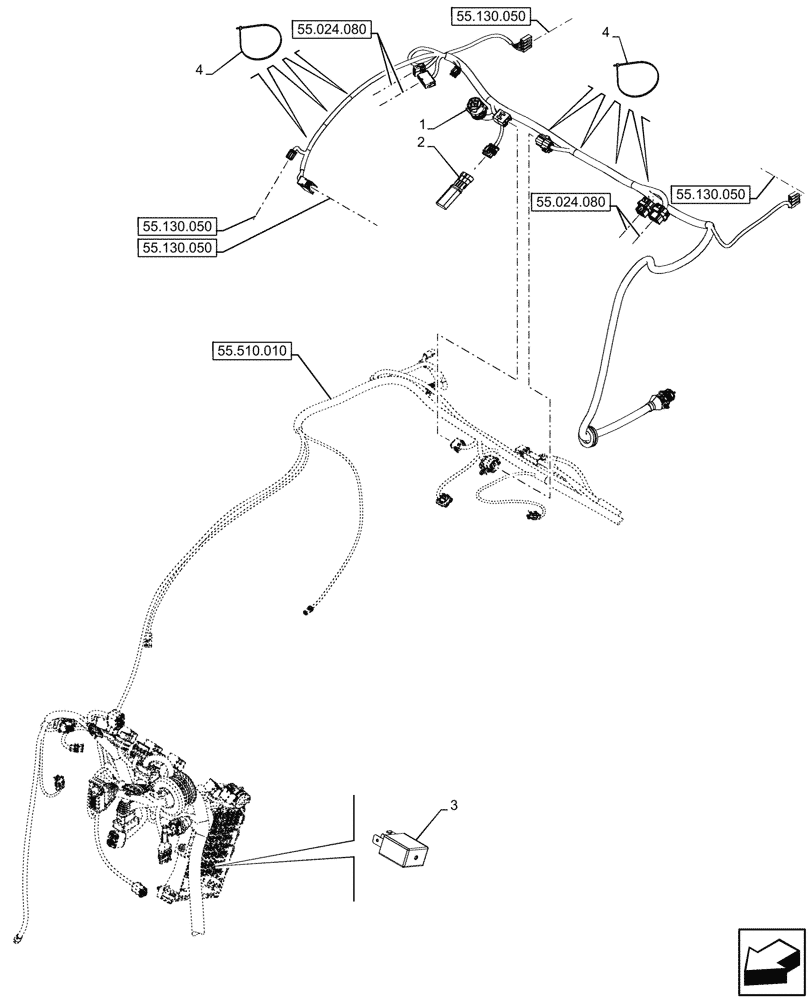

Схема запчастей Case IH FARMALL 110CL - (55.510.030) - MAIN HARNESS, 4WD, W/ SUPERSTEER, CAB (55) - ELECTRICAL SYSTEMS
55.130.050
4
2
4
1
3
55.510.010
55.024.080
55.024.080
55.130.050
55.130.050
55.130.050
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47949312

WIRE HARNESS

Cab Main Harness

1шт.

2

87345428

TERMINAL CONNECTOR,120Ohm/0.5W, 42 Pins

1шт.

3

84543528

RELAY,12V, 20A, Micro

2шт.

4

14560287

CABLE TIE,207.00mm L

7шт.
