(55.510.010) - MAIN HARNESS, 4WD, CAB

Запчасти Case IH FARMALL 110CL (55.510.010) - MAIN HARNESS, 4WD, CAB (55) - ELECTRICAL SYSTEMS

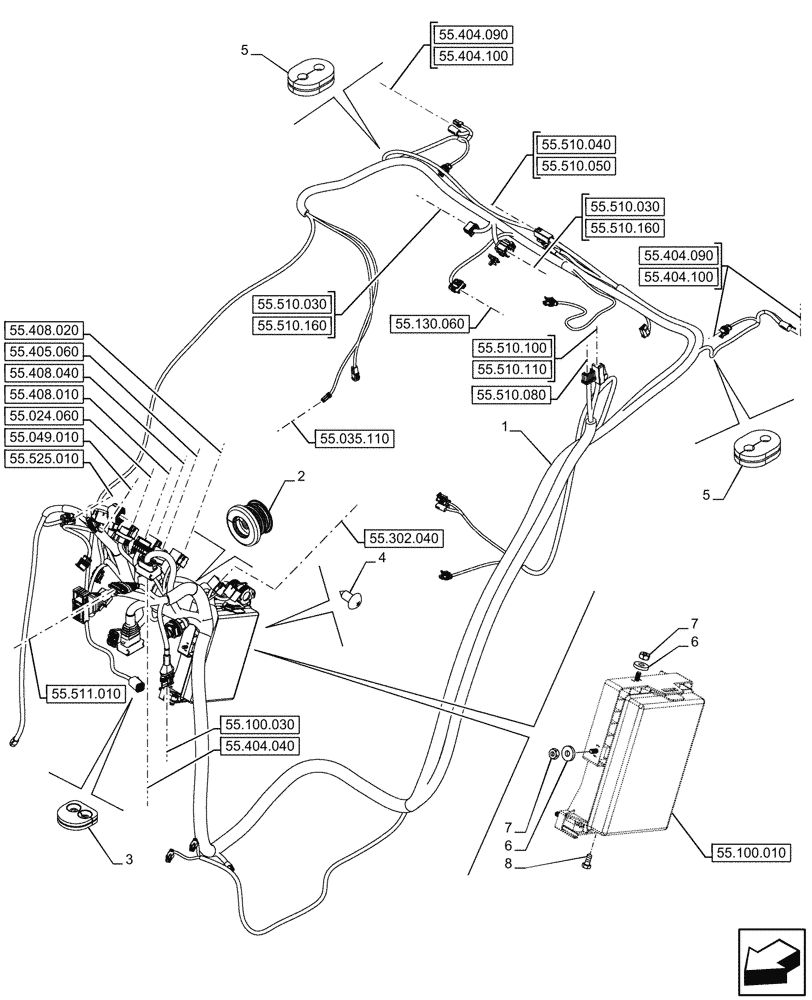

Схема запчастей Case IH FARMALL 110CL - (55.510.010) - MAIN HARNESS, 4WD, CAB (55) - ELECTRICAL SYSTEMS
55.510.160
4
3
6
5
5
7
7
6
2
8
1
55.510.040
55.510.080
55.035.110
55.408.020
55.404.100
55.510.050
55.404.100
55.511.010
55.405.060
55.525.010
55.510.110
55.302.040
55.408.040
55.024.060
55.408.010
55.510.100
55.510.030
55.510.030
55.404.040
55.404.090
55.404.090
55.130.060
55.100.030
55.049.010
55.100.010
55.510.160
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

48013897

WIRE HARNESS

Main Cab Harness

1шт.

2

87386328

GROMMET,47.5 ID x 70mm OD x 56mm L

70mm ID

1шт.

3

48020387

GROMMET,46mm L x 44mm H x 10mm Thk

1шт.

4

16082104

SELF-TAP SCREW,Spcl, Pozidriv Pan Hd, M3 x 2 x 8mm, HI-LO

4шт.

5

87565323

GROMMET,2x8mm ID x 38mm L x 10mm Thk

2шт.

6

12647824

WASHER,6.15mm ID x 16mm OD x 3mm Thk

2шт.

7

15896211

NUT,M6, Cl 8

2шт.

8

10977624

BOLT,Hex, M5 x 12mm, Cl 8.8, Full Thd

1шт.
