(55.405.060) - VAR - 759031, 759033 - LIGHT SWITCH, HAZARD LIGHT SWITCH, CAB

Запчасти Case IH FARMALL 110CL (55.405.060) - VAR - 759031, 759033 - LIGHT SWITCH, HAZARD LIGHT SWITCH, CAB (55) - ELECTRICAL SYSTEMS

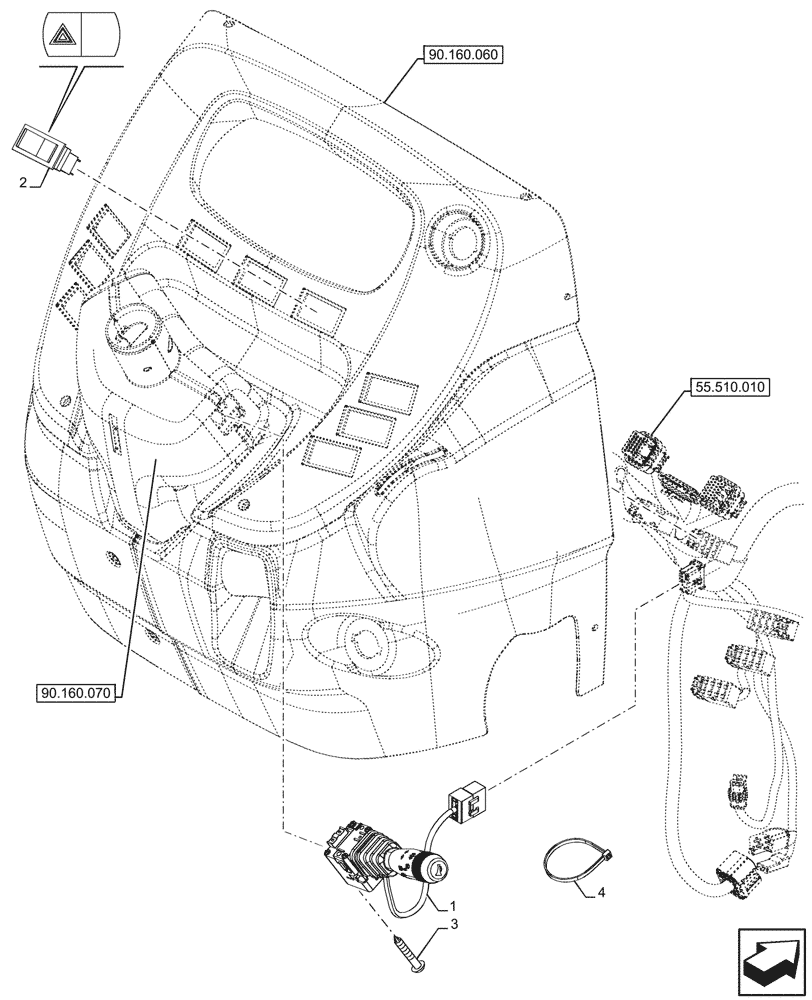

Схема запчастей Case IH FARMALL 110CL - (55.405.060) - VAR - 759031, 759033 - LIGHT SWITCH, HAZARD LIGHT SWITCH, CAB (55) - ELECTRICAL SYSTEMS
90.160.060
3
2
1
90.160.070
4
55.510.010
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47133634

SHUNTER

Control Lights

1шт.

2

87376575

FLASHER SWITCH

Hazard Light

1шт.

3

15902807

SELF-TAP SCREW,Cross Pan Hd, M3.5 x 22mm

3шт.

4

14560187

COLLAR,199mm L

1шт.
