(55.130.060) - VAR - 743535 - REAR, 3 POINT HITCH, STABILIZER, CONTROL PANEL, HARNESS, CAB

Запчасти Case IH FARMALL 110CL (55.130.060) - VAR - 743535 - REAR, 3 POINT HITCH, STABILIZER, CONTROL PANEL, HARNESS, CAB (55) - ELECTRICAL SYSTEMS

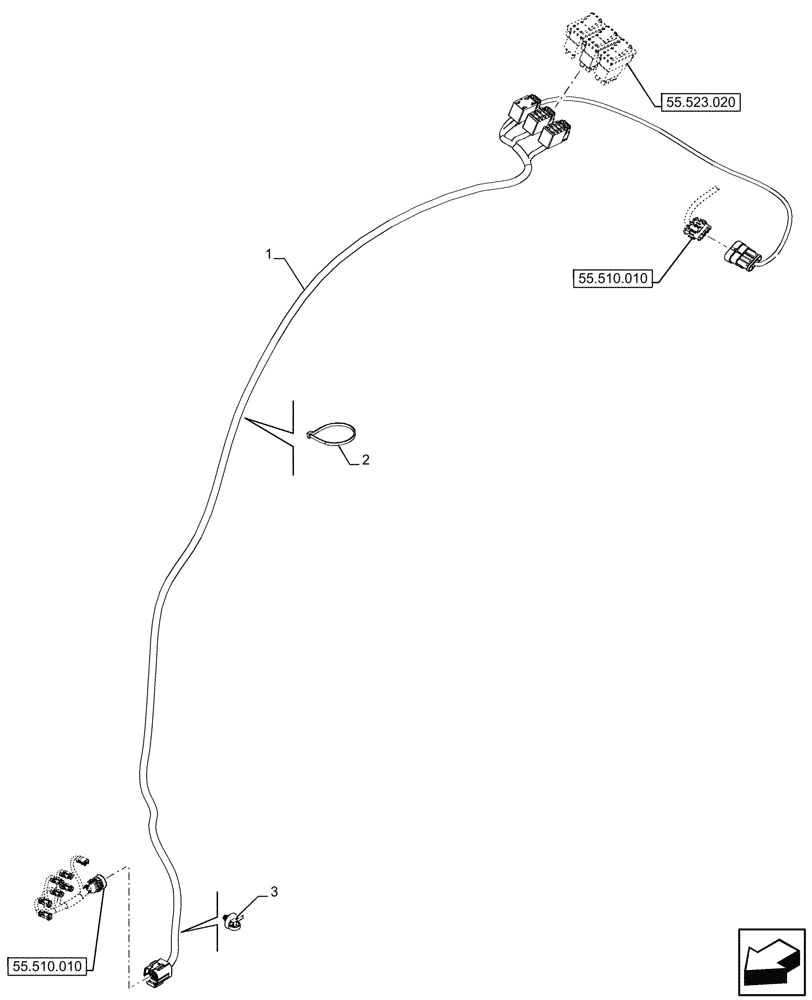

Схема запчастей Case IH FARMALL 110CL - (55.130.060) - VAR - 743535 - REAR, 3 POINT HITCH, STABILIZER, CONTROL PANEL, HARNESS, CAB (55) - ELECTRICAL SYSTEMS
55.523.020
3
2
1
55.510.010
55.510.010
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

48001607

WIRE HARNESS

1шт.

2

14560187

COLLAR,199mm L

4шт.

3

82033028

CABLE TIE,170mm L

2шт.
