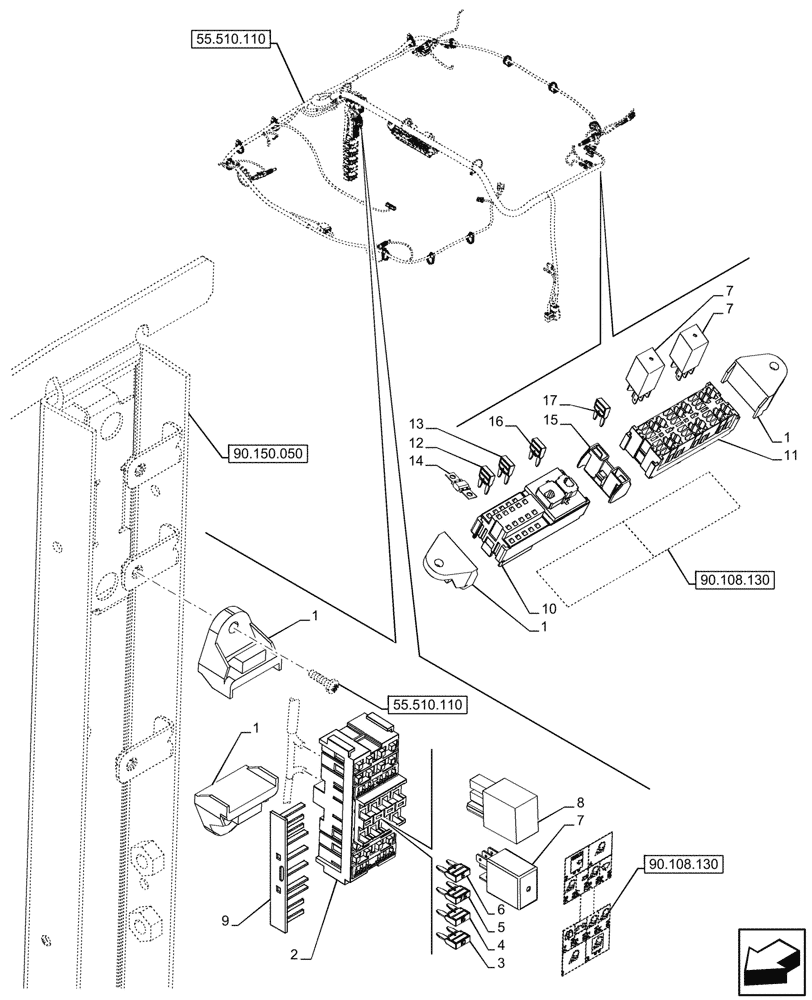

Запчасти Case IH FARMALL 110CL (55.100.060) - VAR - 759033 - FUSE BOX, ROOF, SUPER ECO, CAB (55) - ELECTRICAL SYSTEMS

1

87588035

BRACKET

4шт.

2

84529039

MODULE

1шт.

3

84127702

FUSE,10A, Mini, Red

10A, Mini, Red

2шт.

4

84127703

FUSE,15A, Mini, Blue

15A, Mini, Blue

3шт.

5

84152583

FUSE,7.5A, Mini, Brown

7,5A, Mini, Brown

2шт.

6

84153830

FUSE,5A, Mini, Beige

5A, Mini, Beige

1шт.

7

84543528

RELAY,12V, 20A, Micro

12V, 20A, Micro SPDT

3шт.

8

87604032

RELAY,12V, 30A, Micro

12V, 30A, Micro

1шт.

9

84529040

LOCKING TAB,Wedge Lock

For Module

1шт.

10

87733595

FUSE HOLDER

1шт.

11

84526304

MODULE

1шт.

12

84127704

FUSE,20A, Mini, Yellow

20A, Mini, Yellow

2шт.

13

84127708

FUSE,30A, Mini, Green

30A, Mini, Green

1шт.

14

87341930

RELAY,Mini ISO, 12V, 70A

Midival Fuse, 60A

1шт.

15

48003983

1шт.

16

84127705

FUSE,25A, Mini, White

25A, Mini, White

1шт.

17

84153828

FUSE,2A, Mini, Gray

2A, Mini, Grey

1шт.
