(55.051.010) - VAR - 759031, 759033 - AIR CONDITIONER, W/ ECO CAB, CONTROL PANEL, CAB

Запчасти Case IH FARMALL 110CL (55.051.010) - VAR - 759031, 759033 - AIR CONDITIONER, W/ ECO CAB, CONTROL PANEL, CAB (55) - ELECTRICAL SYSTEMS

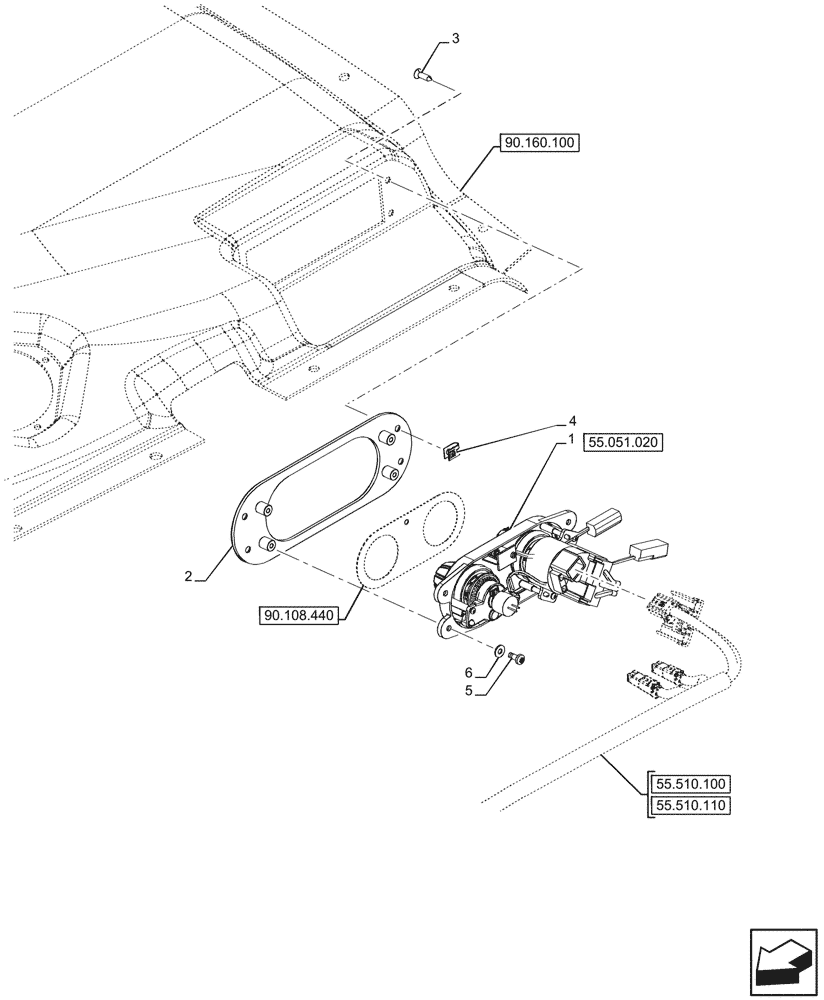

Схема запчастей Case IH FARMALL 110CL - (55.051.010) - VAR - 759031, 759033 - AIR CONDITIONER, W/ ECO CAB, CONTROL PANEL, CAB (55) - ELECTRICAL SYSTEMS
55.051.020
3
5
1
4
2
6
90.160.100
55.510.110
55.510.100
90.108.440
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84296746

CONTROL

ASSY, Air Conditioning

1шт.

2

47898082

BRACKET

1шт.

3

15691477

SCREW,Oval Hd, M4.2 x 1.4 x 16mm

4шт.

4

14372671

SPRING NUT,M4.2, U, 12.4mm long

4шт.

5

13271917

SCREW,Pozidriv Pan Hd, M4 x 10mm, Cl 5.8, Full Thd

4шт.

6

13550001

WASHER,4.15mm ID x 10mm OD x 0.8mm Thk

4шт.
