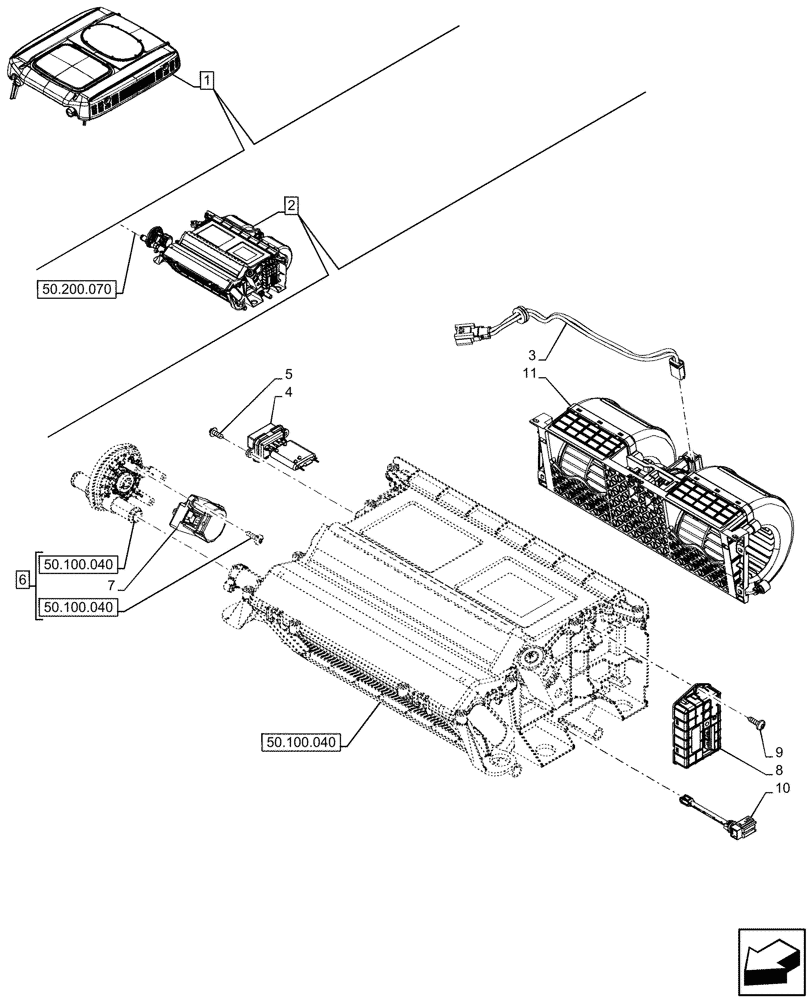

Запчасти Case IH FARMALL 110CL (55.050.030) - VAR - 759033 - AIR CONDITIONER, W/ SUPER ECO CAB, COMPONENTS, BLOWER, CAB (55) - ELECTRICAL SYSTEMS

1

47978399

ROOF

1шт.

2

48021596

CONDITIONING UNIT

ASSY, Incl 3, 9, 11

1шт.

See also Conditioning Unit Components in Figure 50.100.040

1шт.

3

47901276

WIRE HARNESS

Blower

1шт.

4

47901260

RESISTOR

1шт.

5

84582238

SCREW,M4 x 12mm

2шт.

6

47901347

VALVE

ASSY, Incl 7

1шт.

See also Valve Components in Figure 50.100.040

1шт.

7

84601967

ELECTRIC MOTOR,12V

Air Condition Control

1шт.

8

47901153

DRIVER

1шт.

9

84602236

SCREW,M4 x 12mm L

2шт.

10

47901263

SENSOR

Temperature

1шт.

11

48021569

BLOWER,12V

1шт.
