(55.050.020) - VAR - 759031 - AIR CONDITIONER, W/ ECO CAB, HARNESS, SENSOR, CAB

Запчасти Case IH FARMALL 110CL (55.050.020) - VAR - 759031 - AIR CONDITIONER, W/ ECO CAB, HARNESS, SENSOR, CAB (55) - ELECTRICAL SYSTEMS

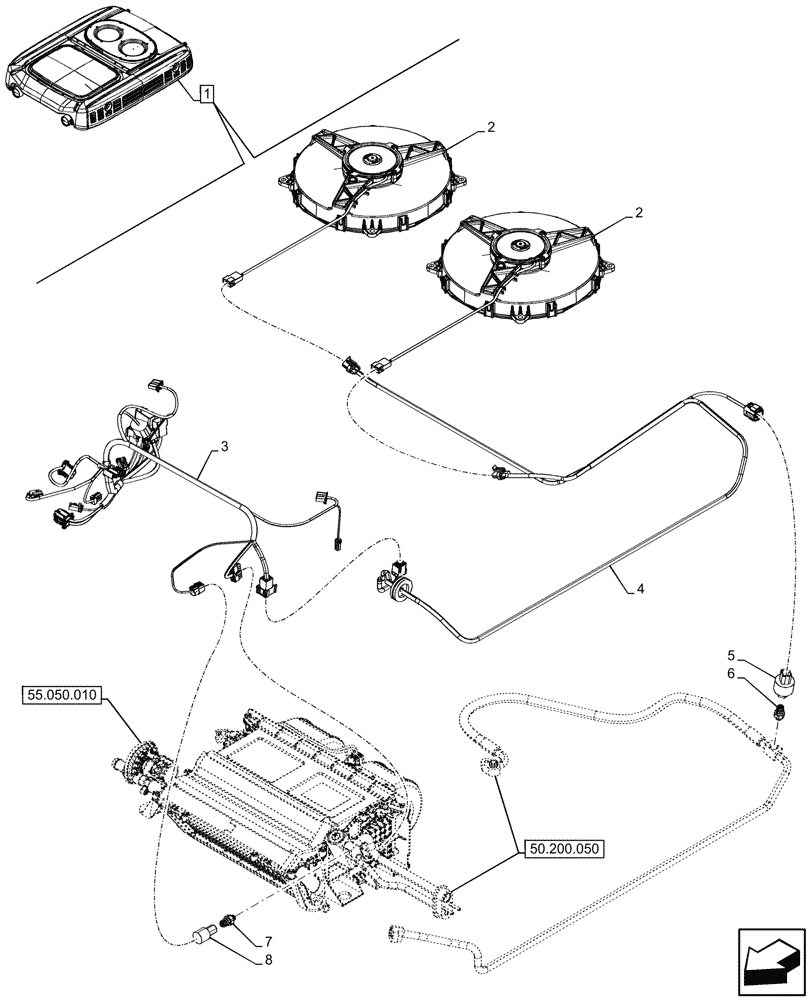

Схема запчастей Case IH FARMALL 110CL - (55.050.020) - VAR - 759031 - AIR CONDITIONER, W/ ECO CAB, HARNESS, SENSOR, CAB (55) - ELECTRICAL SYSTEMS
50.200.050
8
2
4
2
1
3
6
5
7
55.050.010
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47988507

ROOF

ASSY, Incl 2 - 8

1шт.

See also Roof Components in Figures 50.104.010, 50.200.040, 50.200.050, 55.050.010, 55.404.180, 90.150.090

1шт.

2

48043808

BLOWER,12V

2шт.

3

48043849

WIRE HARNESS

HVAC

1шт.

4

48045862

WIRE HARNESS

Condenser

1шт.

5

47704739

SENSOR

Condenser Pressure

1шт.

6

47701685

VALVE

Pressure Connection

1шт.

7

47902920

SENSOR

Pressure Freon Connection

1шт.

8

47902919

SENSOR

Pressure Freon

1шт.
