Запчасти Case IH FARMALL 110CL (55.050.010) - VAR - 759031 - AIR CONDITIONER, W/ ECO CAB, COMPONENTS, BLOWER, CAB (55) - ELECTRICAL SYSTEMS

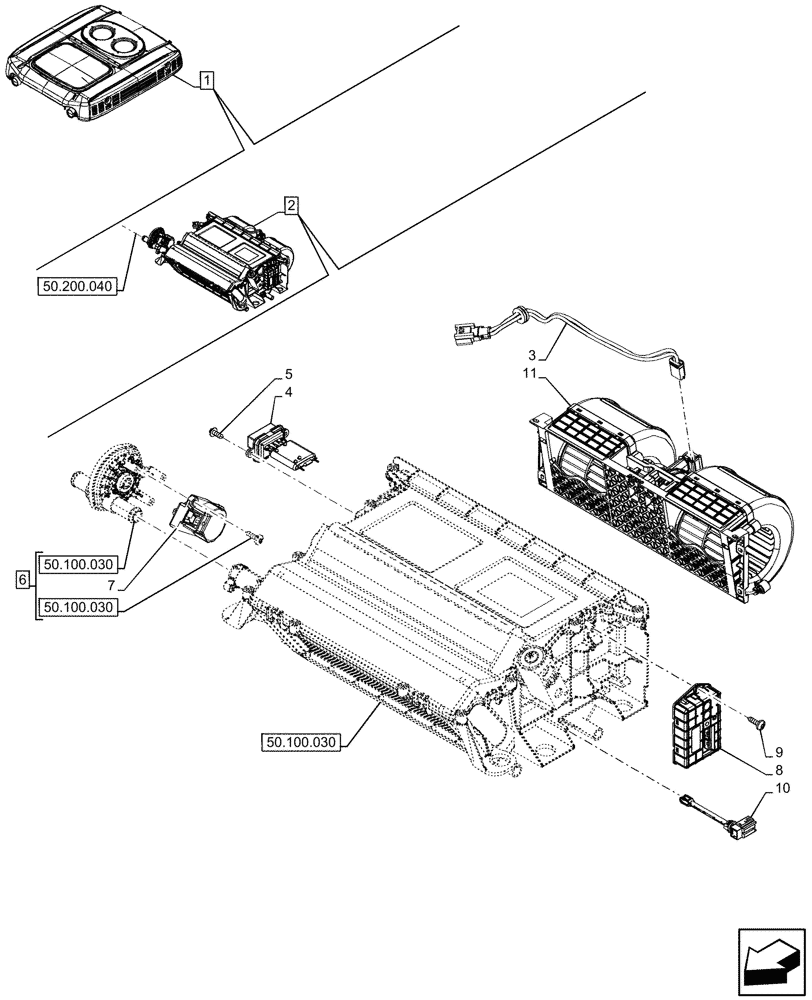

Схема запчастей Case IH FARMALL 110CL - (55.050.010) - VAR - 759031 - AIR CONDITIONER, W/ ECO CAB, COMPONENTS, BLOWER, CAB (55) - ELECTRICAL SYSTEMS
50.100.030
2
4
8
5
7
6
1
10
9
11
3
50.200.040
50.100.030
50.100.030

Артикул

Название

Примечание

Количество

1

47988507

ROOF

ASSY, Incl 2 - 11

1шт.

See also Roof Components in Figures 50.104.010, 50.200.040, 50.200.050, 55.050.020, 55.404.180, 90.150.090

1шт.

2

48021596

CONDITIONING UNIT

ASSY, Incl 3 - 11

1шт.

See also Conditioning Unit Components in Figure 50.100.030

1шт.

3

47901276

WIRE HARNESS

Blower

1шт.

4

47901260

RESISTOR

1шт.

5

84582238

SCREW,M4 x 12mm

2шт.

6

47901347

VALVE

ASSY, Incl 7, 9

1шт.

See also Valve Components in Figure 50.100.030

1шт.

7

84601967

ELECTRIC MOTOR,12V

12V, Air Condition Control

1шт.

8

47901153

DRIVER

1шт.

9

84602236

SCREW,M4 x 12mm L

3шт.

10

47901263

SENSOR

Temperature

1шт.

11

48021569

BLOWER,12V

1шт.

Выбрано товаров: 14
