(55.036.070) - VAR - 743970, 759021 - MID-MOUNT CONTROL VALVE, ELECTRICAL, HARNESS, SWITCH, CAB

Запчасти Case IH FARMALL 110CL (55.036.070) - VAR - 743970, 759021 - MID-MOUNT CONTROL VALVE, ELECTRICAL, HARNESS, SWITCH, CAB (55) - ELECTRICAL SYSTEMS

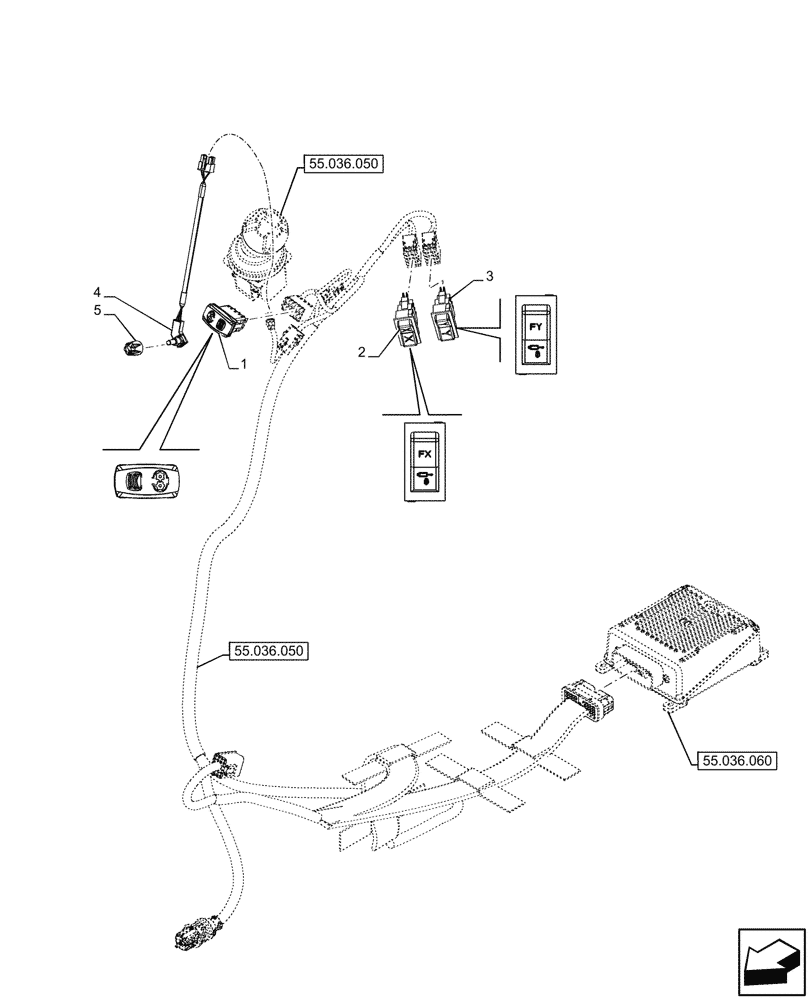

Схема запчастей Case IH FARMALL 110CL - (55.036.070) - VAR - 743970, 759021 - MID-MOUNT CONTROL VALVE, ELECTRICAL, HARNESS, SWITCH, CAB (55) - ELECTRICAL SYSTEMS
55.036.050
4
2
3
1
5
55.036.060
55.036.050
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84575851

SWITCH

Motor Mode Enable

1шт.

2

47856224

ROCKER SWITCH

AS-X-EHR Stop

1шт.

3

47856225

ROCKER SWITCH

AS-Y-EHR Stop

1шт.

4

84213269

POTENTIOMETER

Engine Droop control

1шт.

5

87584683

KNOB

1шт.
